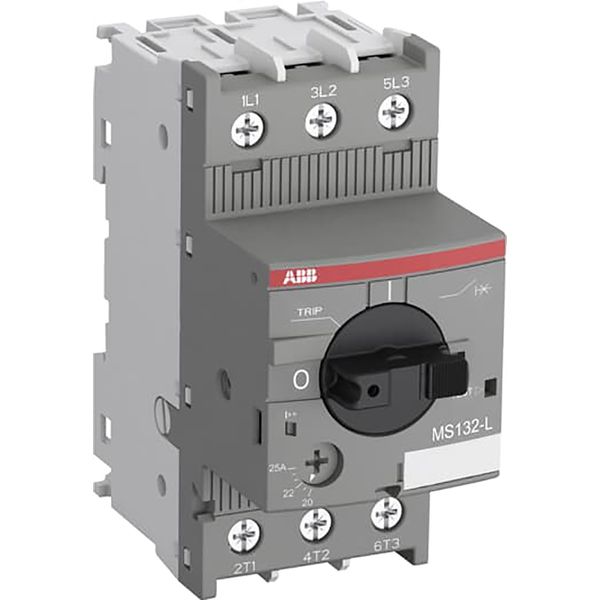

MS132-25L Lamp Circuit Breaker 20 ... 25 A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
103,91 €
per pcs
EAN: 4013614516559
MPN: 1SAM350100R1014
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | MS132-25L Lamp Circuit Breaker 20 ... 25 A |
| Brand | ABB |
| Categories |
Motor protection circuit-breakers
|
| Harmonized System Code | 8536 2010 00 |
| Rated permanent current Iu | 20 A |
| Number of poles | 3 |
| Rated operating voltage | 250-690 V |
| Overload release current setting | 16-20 A |
| Degree of protection (IP) | IP20 |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 100 kA |
| Adjustment range undelayed short-circuit release | 300 A |
Packing details
| Packing level 1 | 4013614516559 |
Other Technical data
| Width | 45 mm |
| Height | 97.8 mm |
| Depth | 87 mm |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| With thermal protection | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Turn button |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | Yes |
| Device construction | Complete device in housing |
Downloads
Description
MS132-20L Lamp starter Trip class 10, 16 ... 20A
