Multi sensor
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Multi sensor |
| Brand | ELTAKO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9015 8020 00 |
| ETIM | EC000926 |
| Model | Multiple sensor |
| Bus system KNX | No |
| Bus system radio frequent | Yes |
| Bus system Powernet | No |
| With bus connection | No |
| Other bus systems | None |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4010312901731, 4010312901731 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Colour | White |
| With heating | Yes |
| Analogue input | No |
| Weather station | Yes |
| Degree of protection (IP) | IP44 |
| With DCF77 | No |
| Acoustic signal | No |
Downloads

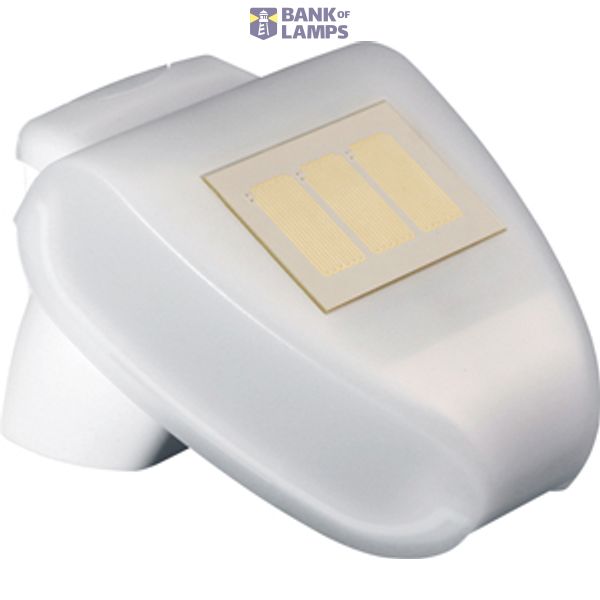

Description
