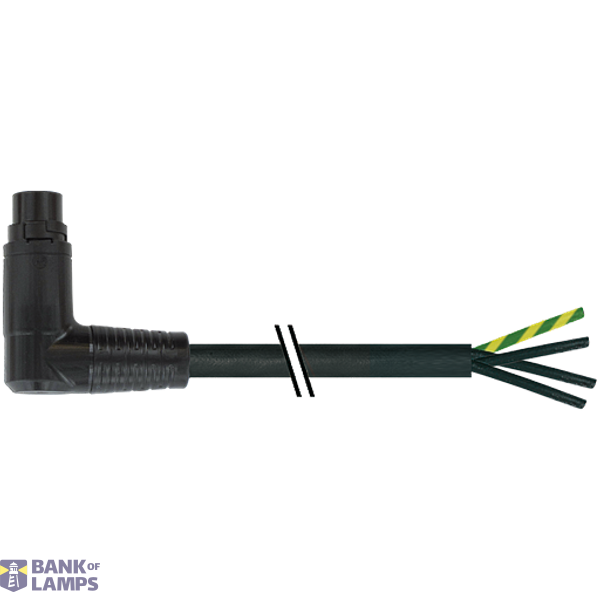

MQ15 male 90° with cable 600V AC type 3 PUR 6x2.5 bk 10m
Order only
EAN: 4065909179413
MPN: 7000-P8111-P631000
Package: 1
Price (excl. VAT)
159,08 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | MQ15 male 90° with cable 600V AC type 3 PUR 6x2.5 bk 10m |
| Brand | Murrelektronik |
| Categories |
Power cords
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| ETIM | EC001576 |
| Nominal current | 13 A |
| Nominal cross section conductor | 2.5 mm² |
| Material outer sheath | Polyurethane (PUR) |
| Number of cores | 6 |
| Outer diameter approx. | 10.5 mm |
| Nominal voltage | 0-600 V |
| Connection type according to IEC 60320, connection 1 | Other |
Packing details
| Packing level 1 | 4065909179413, 4065909179413 |
Other Technical data
| Connection 1 | Other |
| Connection 2 | Free conductor end |
| Frequency | 0-300 Hz |
| Length | 10 m |
| Colour outer sheath | Black |
| Spiralized cable | No |
| Temperature resistance | -50-80 °C |
| Degree of protection (IP) | IP67 |
| With cord switch | No |
| With protective conductor | Yes |
| Connector system system-oriented | Yes |
| Oil resistant according to IEC 60811-404 | Yes |
| Cable entry connection 1 | Right-angled |
Downloads
Description
MQ15 male 90° with cable 600V AC type 3 PUR 6x2.5 bk UL/CSA+drag ch. 10m
