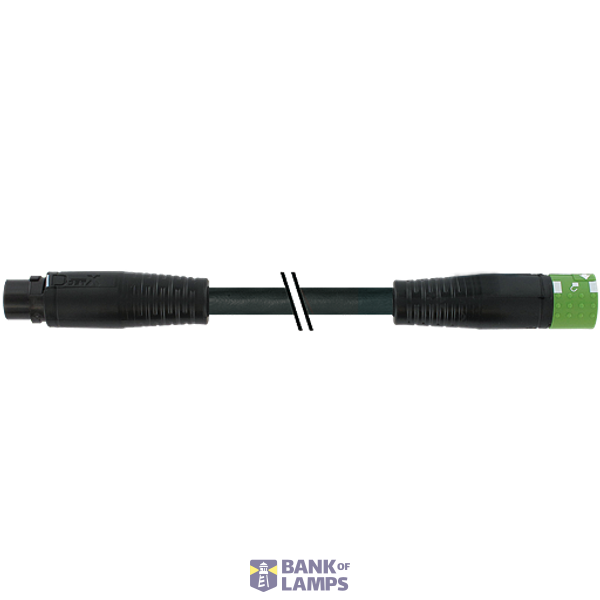

MQ15 male 0° / MQ15 female 0° 600V AC type 3 PVC 4x2.5 bk UL/CSA 6m
Order only
EAN: 4065909173381
MPN: 7000-P8241-P720600
Package: 1
Price (excl. VAT)
91,35 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | MQ15 male 0° / MQ15 female 0° 600V AC type 3 PVC 4x2.5 bk UL/CSA 6m |
| Brand | Murrelektronik |
| Categories |
Power cords
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| ETIM | EC001576 |
| Nominal current | 16 A |
| Nominal cross section conductor | 2.5 mm² |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Number of cores | 4 |
| Outer diameter approx. | 8.8 mm |
| Nominal voltage | 0-600 V |
| Connection type according to IEC 60320, connection 1 | Other |
| Connection type according to IEC 60320, connection 2 | Other |
Packing details
| Packing level 1 | 4065909173381, 4065909173381 |
Other Technical data
| Connection 1 | Other |
| Connection 2 | Other |
| Frequency | 0-300 Hz |
| Length | 6 m |
| Colour outer sheath | Black |
| Spiralized cable | No |
| Temperature resistance | -25-80 °C |
| Degree of protection (IP) | IP67 |
| With cord switch | No |
| With protective conductor | Yes |
| Connector system system-oriented | Yes |
| Oil resistant according to IEC 60811-404 | No |
| Cable entry connection 1 | Straight |
| Cable entry connection 2 | Straight |
Downloads
Description
MQ15 male 0° / MQ15 female 0° 600V AC type 3 PVC 4x2.5 bk UL/CSA 6m
