Mounting box 5-pole socket, L3
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Mounting box 5-pole socket, L3 |
| Brand | Ensto |
| ETIM | EC002600 |
| Equipped with | Clamp |
| Rated insulation voltage Ui | 400 V |
| Sealable | No |
| Max. conductor cross section | 4 mm² |
| Weatherproof | No |
| Degree of protection (IP) | IP21 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 6418677722547 |
| Packing level 2 | 6418677722547 |
| Packing level 3 | 6418677722547 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | White |
| Width | 95 mm |
| Depth | 21 mm |
| Shape | Rectangular |
| Surface protection | Untreated |
| Length | 121 mm |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 5 |
| Explosion-tested version | No |
| Cover attachment | Snapped on |
| With screening | No |
| For Ex-zone gas | None |
| Tackable | No |
| Type of housing feed-through | Preembossing |
| For Ex-Zone dust | None |
| Cover model | Suitable for snap-in connector (brand specific) |
| Castable | No |
| With casting compound | No |
Description

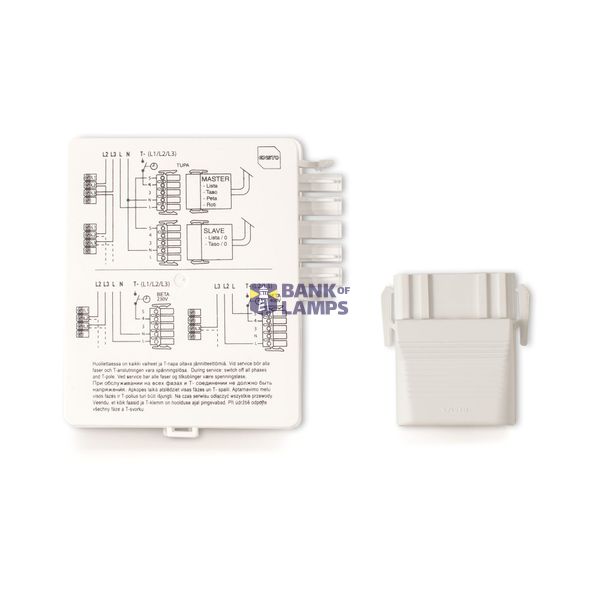

The mounting box KDN506 is equipped with a 5-pole coupler NAC52.R/L3 and a 4-pole wire connector KD160.04. The marking of the coupler is 1, 2, PE, N, 3. The lid is fastened by snapping into place.
