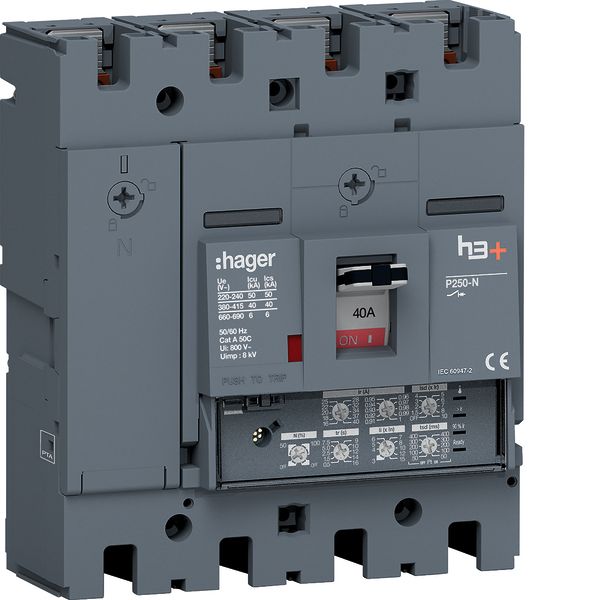

Moulded Case Circuit Breaker h3+ P250 LSI 4P4D N0-50-100% 40A 40kA FTC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
565,70 €
EAN: 3250613176679
MPN: HNT041JR
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Moulded Case Circuit Breaker h3+ P250 LSI 4P4D N0-50-100% 40A 40kA FTC |
| Brand | Hager |
| Categories |
Power Circuit Breakers
|
| Harmonized System Code | 8536 2010 00 |
| Rated permanent current Iu | 40 A |
| Number of poles | 4 |
| Rated voltage | 220-690 V |
| Degree of protection (IP) | IP40 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 40 kA |
| Integrated earth fault protection | No |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3250613176679 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With integrated under voltage release | No |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range short-term delayed short-circuit release | 21.9-400 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Complete device with protection unit | Yes |
