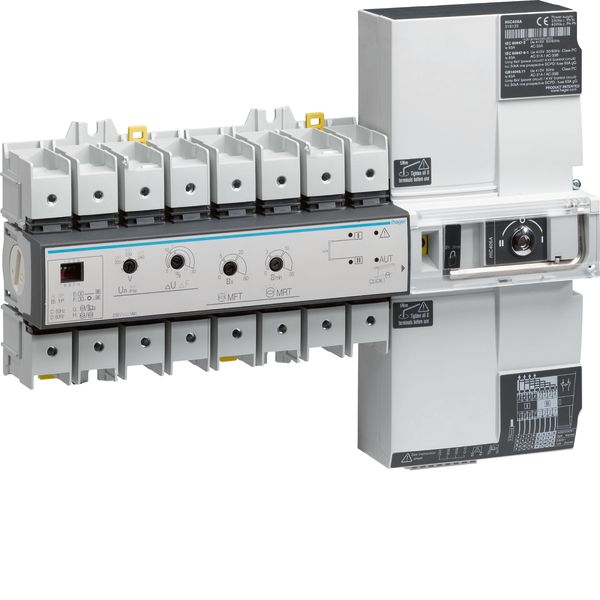

Motorized changeover switch 4P 160A 400V
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
3 302,274 €
per pcs
EAN: 3250613191269
MPN: HIC416A
Package: 1
Pallet: 50
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Motorized changeover switch 4P 160A 400V |
| Brand | Hager |
| Categories |
Switch Disconnectors
|
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 160 A |
| Number of poles | 4 |
| Rated operating voltage | 380-415 V |
| Degree of protection (IP), front side | IP20 |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
| Rated short-time withstand current lcw | 7 kA |
Packing details
| Packing level 1 | 3250613191269, 3250613191269 |
| Packing level 2 | 3250613191269 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Conditioned rated short-circuit current Iq | 40 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Other |
| Rated operation power at AC-23, 400 V | 56 kW |
| Colour control element | Other |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 415 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | 160 A |
| Switching power at 400 V | 105 kW |
| Version as reversing switch | Yes |
| Degree of protection (NEMA) | Other |
Description
Motorized changeover switch 4P 160A 400V
Accessories
In stock: No
Hager
Terminal shrouds 4P LBS 100-160A
35,574 €
per pcs
EAN: 3250613140762
MPN: HZC218
Package: 1
Pallet: 480
