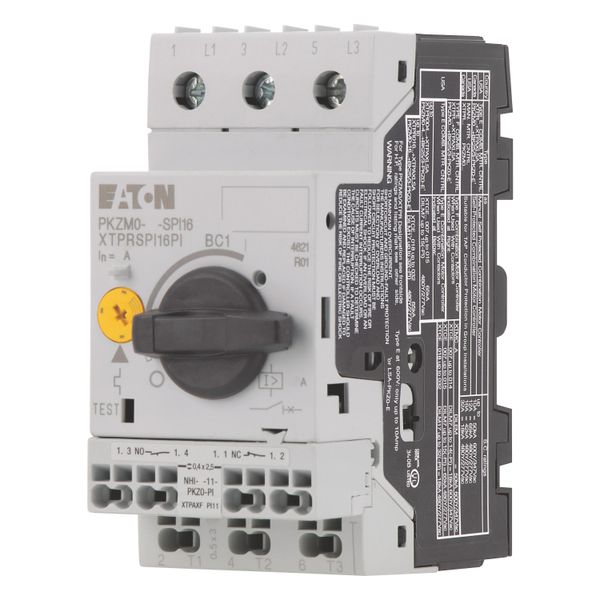

Motor-protective circuit-breaker, 3-pole + 1 N/O + 1 N/C, 0.09 kW, 0.2
Order only
Price (excl. VAT):
58,64 €
EAN: 4015082954239
MPN: EP-400192
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Motor-protective circuit-breaker, 3-pole + 1 N/O + 1 N/C, 0.09 kW, 0.2 |
| Brand | EATON |
| Categories |
Motor protection circuit-breakers
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2010 00 |
| Rated permanent current Iu | 0.4 A |
| Number of poles | 3 |
| Rated operating voltage | 690 V |
| Overload release current setting | 0.4 A |
| Degree of protection (IP) | IP20 |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 150 kA |
| Adjustment range undelayed short-circuit release | 6.2 A |
Packing details
| Packing level 1 | 4015082954239 |
Other Technical data
| Width | 45 mm |
| Height | 94 mm |
| Depth | 75 mm |
| Rated operation power at AC-3, 400 V | 0.09 kW |
| With integrated auxiliary switch | Yes |
| With integrated under voltage release | No |
| With thermal protection | No |
| Type of electrical connection of main circuit | Screw-/spring clamp connection |
| Type of control element | Turn button |
| Switch off technique | Thermomagnetic |
| Rated operation power at AC-3, 230 V | 0.06 kW |
| Phase failure sensitive | Yes |
| Device construction | Built-in device fixed built-in technique |
Description
Motor-protective circuit-breaker, 3-pole + 1 N/O + 1 N/C, 0.09 kW, 0.25 - 0.4 A, Feed-side screw terminals/output-side push-in terminals
