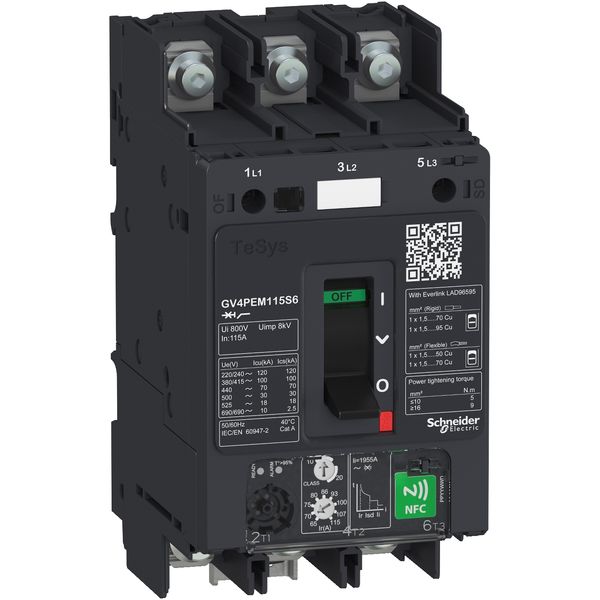

Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic multifunction, lugs terminals

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

429,29 €

This price is valid until 31.12.25

EAN: 3606481310941

MPN: GV4PEM115N6

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic multifunction, lugs terminals
Brand	Schneider Electric
Categories	Motor protection circuit-breakers
Country of origin	PL
Harmonized System Code	8536 2090 00
Rated permanent current Iu	115 A
Number of poles	3
Rated operating voltage	0-690 V
Overload release current setting	65-115 A
Degree of protection (IP)	IP40
Rated short-circuit breaking capacity lcu at 400 V, AC	50 kA
Adjustment range undelayed short-circuit release	1955 A

Packing details

Packing level 1

3606481310941

Other Technical data

Width	81 mm
Height	155 mm
Depth	116 mm
Rated operation power at AC-3, 400 V	55 kW
With integrated auxiliary switch	No
With integrated under voltage release	No
With thermal protection	Yes
Type of electrical connection of main circuit	Screw connection
Type of control element	Rocker lever
Switch off technique	Electronic
Rated operation power at AC-3, 230 V	30 kW
Phase failure sensitive	Yes
Device construction	Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Others Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. Multifunction circuit breaker, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
