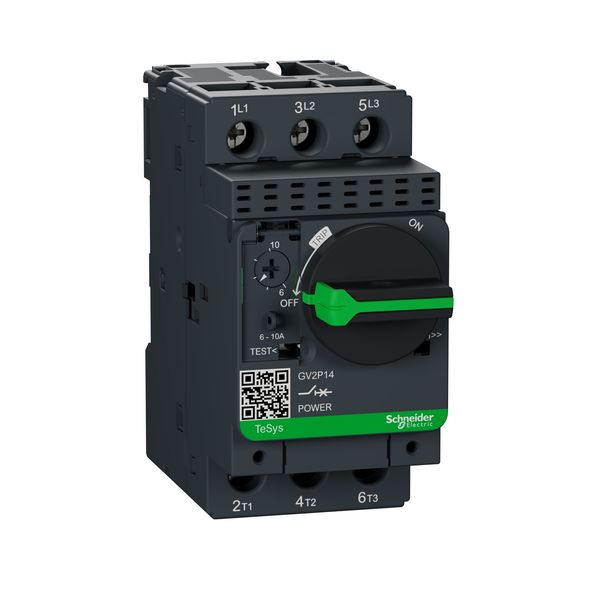

Motor circuit breaker, TeSys Deca, 3P, 6-10 A, thermal magnetic, screw clamp terminals

In vendor's stock

Price (excl. VAT):

76,81 €

This price is valid until 31.12.25

EAN: 3389110213492

MPN: GV2P14

Package: 1

Box: 20

Pallet: 320

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Motor circuit breaker, TeSys Deca, 3P, 6-10 A, thermal magnetic, screw clamp terminals
Brand	Schneider Electric
Categories	Motor protection circuit-breakers
Country of origin	FR
Harmonized System Code	8536 2010 00
Rated permanent current Iu	10 A
Number of poles	3
Rated operating voltage	690 V
Overload release current setting	6-10 A
Degree of protection (IP)	IP20
Rated short-circuit breaking capacity lcu at 400 V, AC	100 kA
Adjustment range undelayed short-circuit release	138 A

Packing details

Packing level 1	3389110213492
Packing level 2	3389110213490
Packing level 3	3389110213492

Other Technical data

Width	44.5 mm
Height	89 mm
Depth	97 mm
Rated operation power at AC-3, 400 V	3 kW
With integrated auxiliary switch	No
With integrated under voltage release	No
With thermal protection	Yes
Type of electrical connection of main circuit	Screw connection
Type of control element	Turn button
Switch off technique	Thermomagnetic
Rated operation power at AC-3, 230 V	2.2 kW
Phase failure sensitive	Yes
Device construction	Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Others Declaration DOC CE (Declaration of conformity CE) Instructions for use Mounting instruction

Description

TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
