Schneider Electric

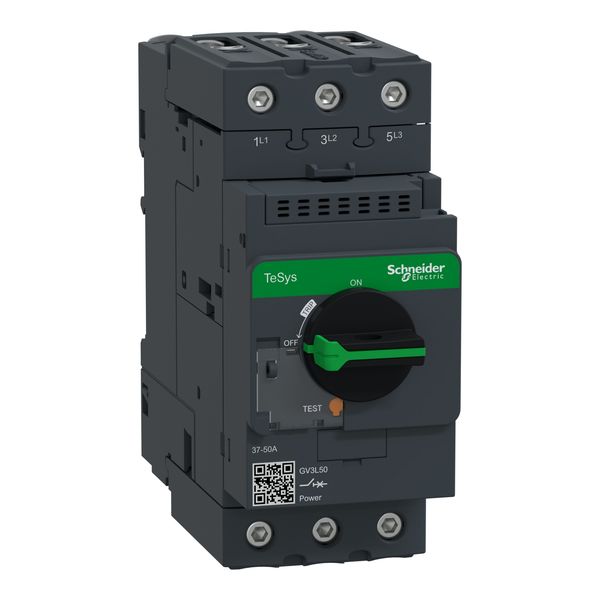

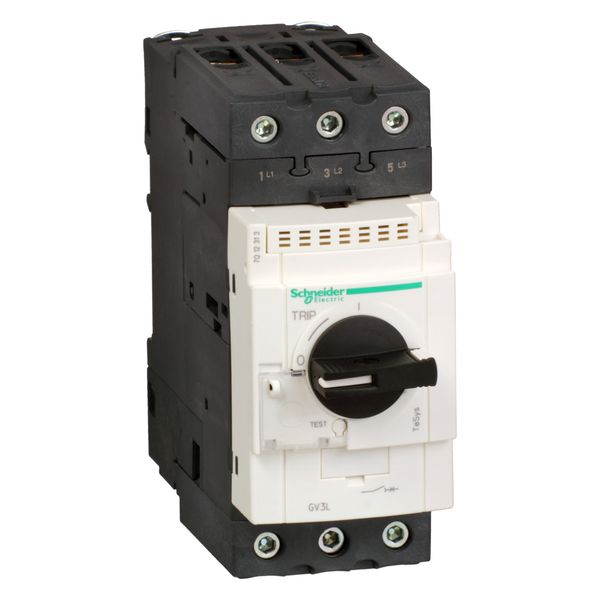

Motor circuit breaker, TeSys Deca, 3P, 50 A, magnetic, rotary handle, EverLink terminals

In stock: No Vendor stock: Yes Minimal order quantity: 1
Price (excl. VAT):
177,29 €
This price is valid until 31.12.25
EAN: 3389119405454
MPN: GV3L50
Package: 1
Pallet: 60
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Motor circuit breaker, TeSys Deca, 3P, 50 A, magnetic, rotary handle, EverLink terminals
Brand Schneider Electric
Categories Motor protection circuit-breakers
Country of origin FR
Harmonized System Code 8536 2010 00
Rated permanent current Iu 50 A
Number of poles 3
Rated operating voltage 690 V
Degree of protection (IP) IP20
Rated short-circuit breaking capacity lcu at 400 V, AC 50 kA
Adjustment range undelayed short-circuit release 700 A

Packing details

Packing level 1 3389119405454
Packing level 2 3389119405454

Other Technical data

Width 55 mm
Height 132 mm
Depth 136 mm
Rated operation power at AC-3, 400 V 22 kW
With integrated auxiliary switch No
With integrated under voltage release No
With thermal protection No
Type of electrical connection of main circuit Screw connection
Type of control element Turn button
Switch off technique Magnetic
Rated operation power at AC-3, 230 V 15 kW
Phase failure sensitive Yes
Device construction Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Others Instructions for use Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD350 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
