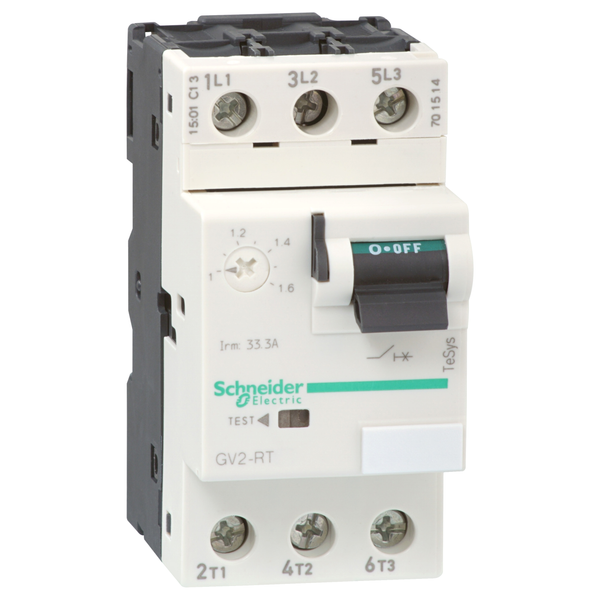

MD01 image 1
Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals image 2
Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals image 3
Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals image 4
MD01 thumbnail 1
Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals thumbnail 2
Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals thumbnail 3
Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals thumbnail 4
Schneider Electric

Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

In vendor's stock
Price (excl. VAT):
55,31 €
This price is valid until 31.12.25
EAN: 3389110520651
MPN: GV2RT10
Package: 1
Box: 24
Pallet: 384
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Motor circuit breaker, TeSys Deca, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals
Brand Schneider Electric
Categories Motor protection circuit-breakers
Country of origin FR
Harmonized System Code 8536 2010 00
Rated permanent current Iu 6.3 A
Number of poles 3
Rated operating voltage 690 V
Overload release current setting 4-6.3 A
Degree of protection (IP) IP20
Rated short-circuit breaking capacity lcu at 400 V, AC 100 kA
Adjustment range undelayed short-circuit release 138 A

Packing details

Packing level 1 3389110520651
Packing level 2 3389110520659
Packing level 3 3389110520651

Other Technical data

Width 45 mm
Height 89 mm
Depth 78.5 mm
Rated operation power at AC-3, 400 V 2.2 kW
With integrated auxiliary switch No
With integrated under voltage release No
With thermal protection Yes
Type of electrical connection of main circuit Screw connection
Type of control element Rocker lever
Switch off technique Thermomagnetic
Rated operation power at AC-3, 230 V 1.1 kW
Phase failure sensitive Yes
Device construction Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Others Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for high starting current peak motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
