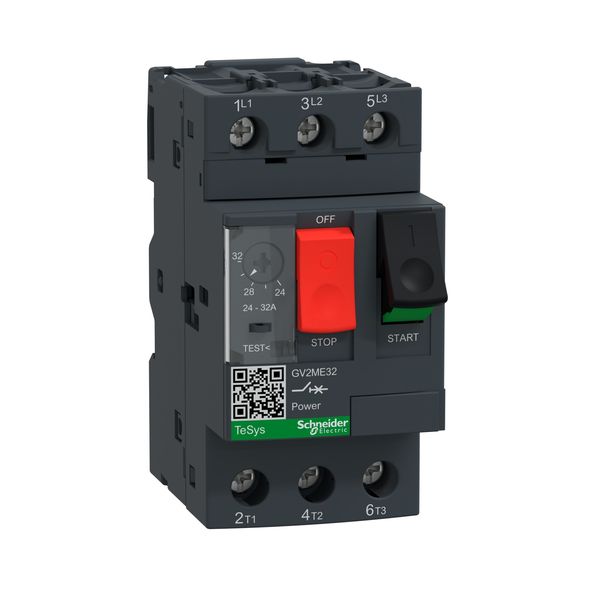

Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units image 1
MD01 image 2
MD01 image 3
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units image 4
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units image 5
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units image 6
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units thumbnail 1
MD01 thumbnail 2
MD01 thumbnail 3
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units thumbnail 4
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units thumbnail 5
Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units thumbnail 6
Schneider Electric

Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units

Order only Minimal order quantity: 24
Price (excl. VAT):
127,28 €
This price is valid until 31.12.25
Subtotal: 3 054,72 € MOQ: 24
EAN: 3389110658668
MPN: GV2ME32TQ
Package: 1
Box: 24
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Motor circuit breaker, TeSys Deca, 3P, 24-32 A, thermal magnetic, screw clamp terminals, TQ 24 units
Brand Schneider Electric
Categories Motor protection circuit-breakers
Country of origin FR
Harmonized System Code 8536 2010 00
Rated permanent current Iu 32 A
Number of poles 3
Rated operating voltage 0-690 V
Overload release current setting 24-32 A
Degree of protection (IP) IP20
Rated short-circuit breaking capacity lcu at 400 V, AC 100 kA
Adjustment range undelayed short-circuit release 416 A

Packing details

Packing level 1 3389110658668
Packing level 2 3389110658666

Other Technical data

Width 45 mm
Height 89 mm
Depth 78.2 mm
Rated operation power at AC-3, 400 V 15 kW
With integrated auxiliary switch No
With integrated under voltage release No
With thermal protection Yes
Type of electrical connection of main circuit Screw connection
Type of control element Push button
Switch off technique Thermomagnetic
Rated operation power at AC-3, 230 V 7.5 kW
Phase failure sensitive Yes
Device construction Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Declaration DOC CE (Declaration of conformity CE) Others Mounting instruction Instructions for use

Description

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 10kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
