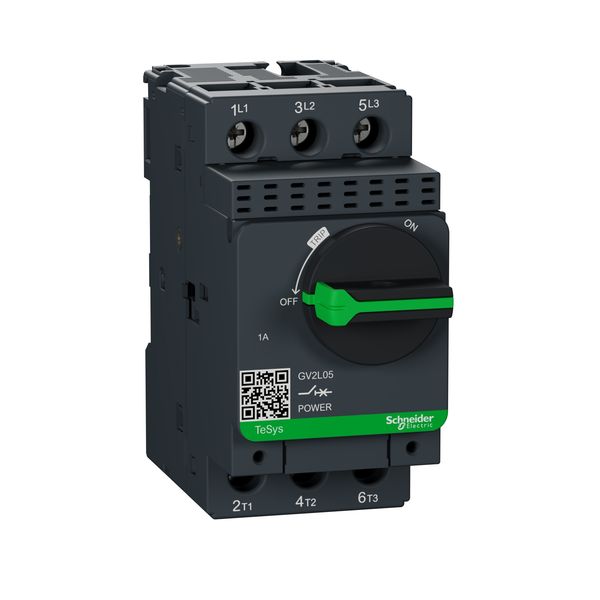

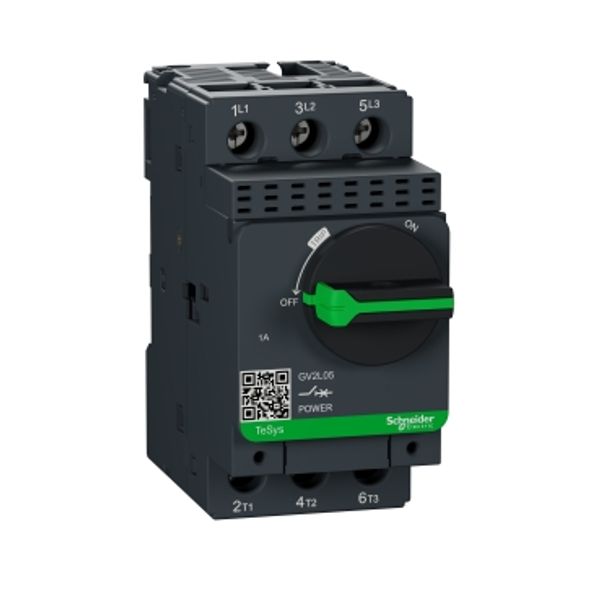

Motor Circuit Breaker TeSys GV2 Magnetic 3P 1A

Order only

Price (excl. VAT):

55,89 €

This price is valid until 31.12.26

EAN: 3389110213225

MPN: GV2L05

Package: 1

Box: 20

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Motor Circuit Breaker TeSys GV2 Magnetic 3P 1A
Brand	Schneider Electric
Categories	Motor protection circuit-breakers
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 2010 00
Rated permanent current Iu	1 A
Number of poles	3
Rated operating voltage	690 V
Degree of protection (IP)	IP20
Rated short-circuit breaking capacity lcu at 400 V, AC	100 kA
Adjustment range undelayed short-circuit release	13 A

Packing details

Packing level 1	3389110213225
Packing level 2	3389110213223

Other Technical data

Width	45 mm
Height	89 mm
Depth	97 mm
Rated operation power at AC-3, 400 V	0.37 kW
With integrated auxiliary switch	No
With integrated under voltage release	No
With thermal protection	No
Type of electrical connection of main circuit	Screw connection
Type of control element	Turn button
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	0.18 kW
Phase failure sensitive	Yes
Device construction	Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Others Mounting instruction Declaration DOC CE (Declaration of conformity CE)

Description

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25-0.37kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD05 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
