Schneider Electric

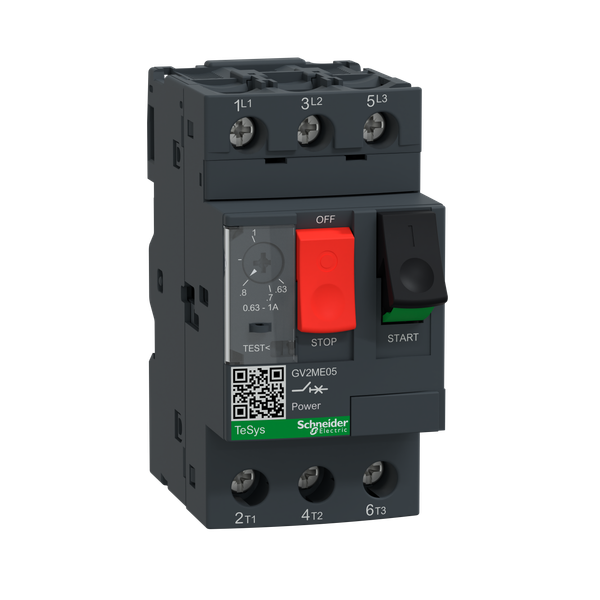

Motor circuit breaker, TeSys Deca, 3P, 0.63-1 A, thermal magnetic, screw clamp terminals

In stock In vendor's stock
Price (excl. VAT):
47,89 €
This price is valid until 31.12.25 or while stock lasts
EAN: 3389110343038
MPN: GV2ME05
Package: 1
Box: 24
Pallet: 768
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Motor circuit breaker, TeSys Deca, 3P, 0.63-1 A, thermal magnetic, screw clamp terminals
Brand Schneider Electric
Categories Motor protection circuit-breakers
Country of origin FR
Harmonized System Code 8536 2010 00
Rated permanent current Iu 1 A
Number of poles 3
Rated operating voltage 230-690 V
Overload release current setting 0.63-1 A
Degree of protection (IP) IP20
Rated short-circuit breaking capacity lcu at 400 V, AC 100 kA
Adjustment range undelayed short-circuit release 13 A

Packing details

Packing level 1 3389110343038
Packing level 2 3389110343036
Packing level 3 3389110343038

Other Technical data

Width 44.5 mm
Height 89 mm
Depth 78.2 mm
Rated operation power at AC-3, 400 V 0.25 kW
With integrated auxiliary switch No
With integrated under voltage release No
With thermal protection Yes
Type of electrical connection of main circuit Screw connection
Type of control element Push button
Switch off technique Thermomagnetic
Rated operation power at AC-3, 230 V 0.12 kW
Phase failure sensitive Yes
Device construction Complete device in housing

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Others Instructions for use Mounting instruction Declaration DOC CE (Declaration of conformity CE)

Description

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
