Motion sensor CR-18, max. 800 W, detection angle 360°, range 8 m, IP20, white

Order only

Price (excl. VAT):

5,60 €

This price is valid until 30.06.26

EAN: 5902801282058

MPN: CR-CR18000-00

Package: 1

Box: 100

Pallet: 2500

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Motion sensor CR-18, max. 800 W, detection angle 360°, range 8 m, IP20, white
Brand	GTV Lighting
Categories	Motion & Presence Sensors
Colour	White
Nominal voltage	220-240
Degree of protection (IP)	IP20

Packing details

Packing level 1	5902801282058
Packing level 2	5902801282225
Packing level 3	2012801293244
Packing level 4	2012801293251

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

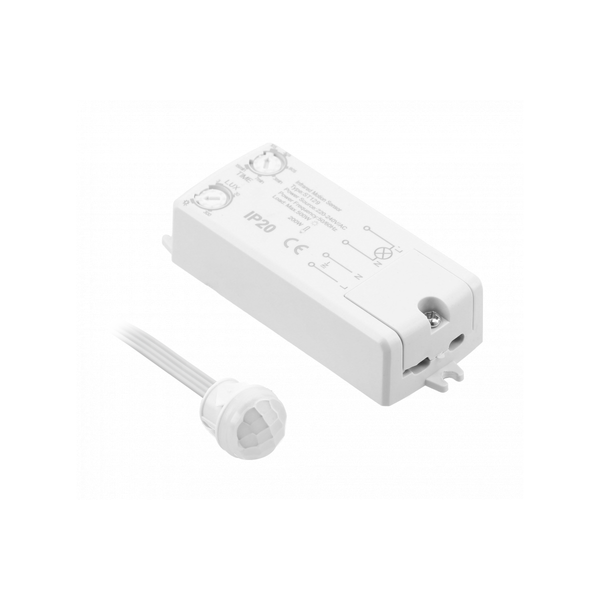

A minimalist solution with maximum functionality. CR-18 is an extremely discreet and modern motion detector, whose compact detector is connected to the sensor by a 2-meter long cable. The detector is mounted in a hole with a diameter of only 14 mm, which allows easy integration into any space without disturbing the aesthetics.

The sensor controller is designed to be placed in any easily accessible location, making it much easier to use and set up.

Customized features:

Distinguishing between day and night: The sensor intelligently adapts its operation to the current light conditions. In "sun" mode, it is active around the clock, while in "3" mode it is activated only when the light intensity is lower than 3 LUX.
Adjustable hold-on: Selectable hold-up time when motion is detected with options from 10 seconds to 15 minutes (10 sec, 30 sec, 90 sec, 3 min, 7 min, 15 min), providing flexibility to suit your individual needs.

Wall Mounting: The recommended height of 1.8 to 2.5 meters provides a 120-degree detection angle and a range of up to 8 meters;
Ceiling mounting: Installation at a height of 2.2 to 4 meters allows a 360-degree detection angle and a detection range of up to 3 meters.
