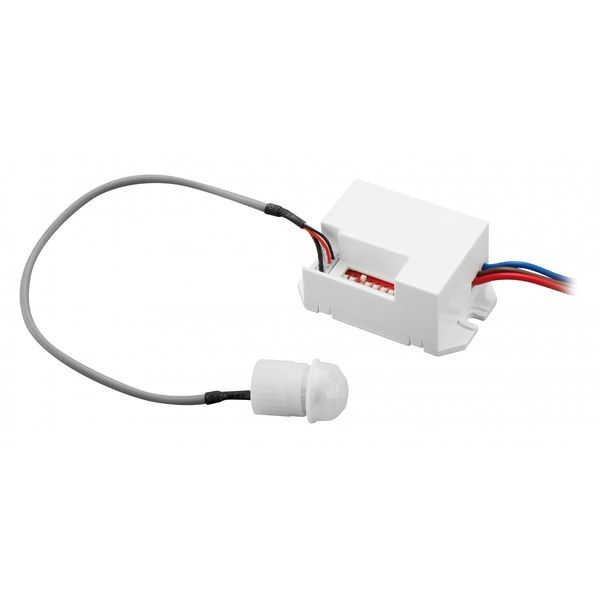

Motion sensor CR-7, max. 800 W, detection angle 360°, range 6 m ± 1.8- 2.5 m, IP20, white

Order only

Price (excl. VAT):

4,82 €

This price is valid until 30.06.26

EAN: 5901867103444

MPN: CR-CR7000-00

Package: 1

Box: 100

Pallet: 4000

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Motion sensor CR-7, max. 800 W, detection angle 360°, range 6 m ± 1.8- 2.5 m, IP20, white
Brand	GTV Lighting
Categories	Motion & Presence Sensors
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8531 1030 00
Colour	White
Nominal voltage	220-240
Degree of protection (IP)	IP20

Packing details

Packing level 1	5901867103444
Packing level 2	5901867111029
Packing level 3	2012801001801
Packing level 4	2012801001818

Downloads

Instructions for use Declaration DOC CE (Declaration of conformity CE)

Description

CR-7 infrared motion sensor uses the detection of heat radiated by people in the infrared band. Thanks to this, after detecting movement in the detection field, the sensor can turn on the connected receivers, and automatically recognize day and night depending on the user's settings.

Lighting maintenance time is gradually adjustable, and the power consumption in standby mode is only 0.1 W. The maximum permissible load for incandescent sources is 800W, and for LED lighting 200W.

Automatic day and night recognition: the sensor works during the day and night with the SUN setting (sun - maximum setting) or only in the dark when the ambient light intensity is less than 10 lux with the MOON setting.
The SENS adjustment allows for adjustment of the sensitivity of the sensor to the workplace, low sensitivity for small rooms, and high sensitivity for large rooms.
Lighting maintenance time is summed up continuously, which enables the switch-off time to be adjusted to the user's needs.
Lighting maintenance adjustment is gradual: 5 seconds, 30 seconds, 1 minute, 3 minutes, 5 minutes and 8 minutes.
Maximum permissible load for incandescent sources is 800W, and for LED lighting 200W.
