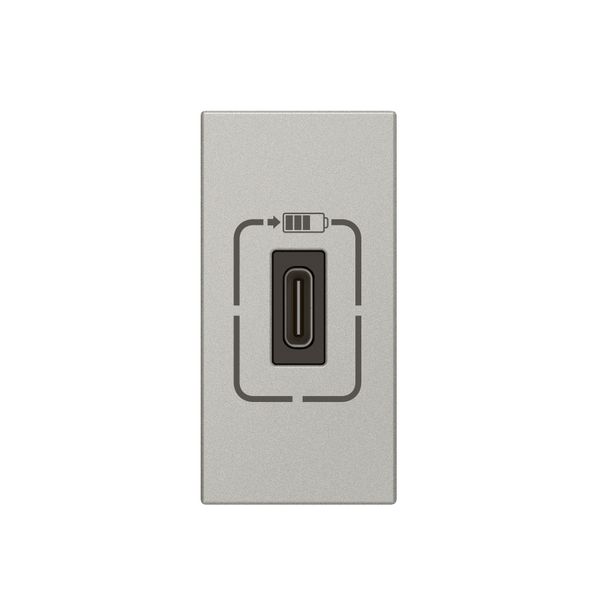

USB-C Charger Mosaic 7.5 W, 1 Module, Aluminium
Discontinued
EAN: 3414971268050
MPN: 079389
Package: 10
Box: 100
Pallet: 4000
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | MOSAIC USB CHARGEUR 1 MOD TYPE C 1.5A 7.5W ALU |
| Brand | Legrand |
| Categories |
Sockets
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8504 4055 00 |
| ETIM | EC002949 |
| Model | Other |
| Connection type | Screwed terminal |
| Max. output current | 1500 mA |
| Operating voltage | 100-240 V |
Packing details
| Packing level 1 | 3414971268067 |
| Packing level 2 | 3414971268074 |
| Packing level 3 | 3414971268050 |
Other Technical data
| Mounting method | Module frame |
| Colour | Aluminium |
| Output voltage | 5 V |
| RAL-number | 7040 |
| Number of outputs | 1 |
| Frequency | 50-60 Hz |
| Impact strength | IK04 |
| Suitable for degree of protection (IP) | IP40 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device depth | 41 mm |
| Min. depth of built-in installation box | 40 mm |
| Type of USB power supply | C |
| Anti-bacterial treatment | No |
