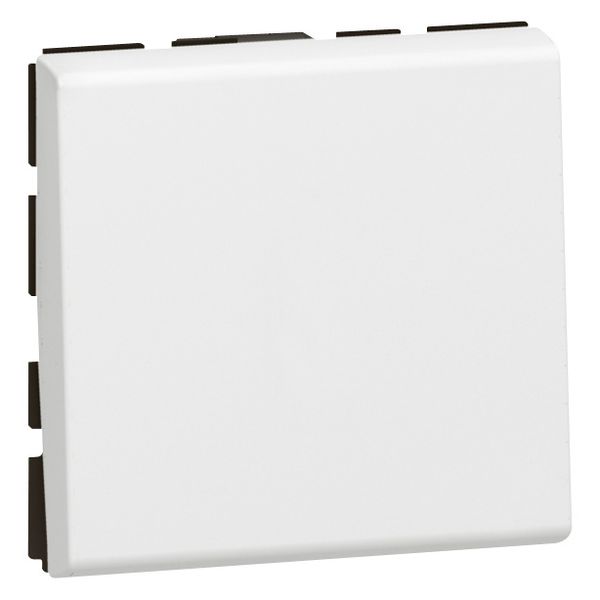

Push Button Mosaic 2 Modules
Order only
EAN: 3245060787158
MPN: 078715
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | Mosaic pulsdrukker 2 mod antiB |
| Brand | Legrand |
| Categories |
Switches
|
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000029 |
| Nominal voltage | 250 V |
| Method of operation | Rocker |
| Model | Single push button |
| Rated current | 6 A |
| Number of poles | 1 |
| With lighting | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
Other Technical data
| Mounting method | Module frame |
| Assembly arrangement | Modular device for domestic switching devices |
| Colour | White |
| Halogen free | Yes |
| Connection type | Push-in clamp |
| Imprint | None |
| Surface protection | Other |
| With signal lamp | No |
| Label space/information surface | No |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Engage (snap) |
| Number of rockers | 1 |
| RAL-number (similar) | 9003 |
| Impact strength | IK04 |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP31 |
| Number of contacts as change-over contact | 0 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 36.3 mm |
| Number of modules (module system) | 2 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Number of revolving contacts | 0 |
| Contactless type | No |
| Anti-bacterial treatment | Yes |
