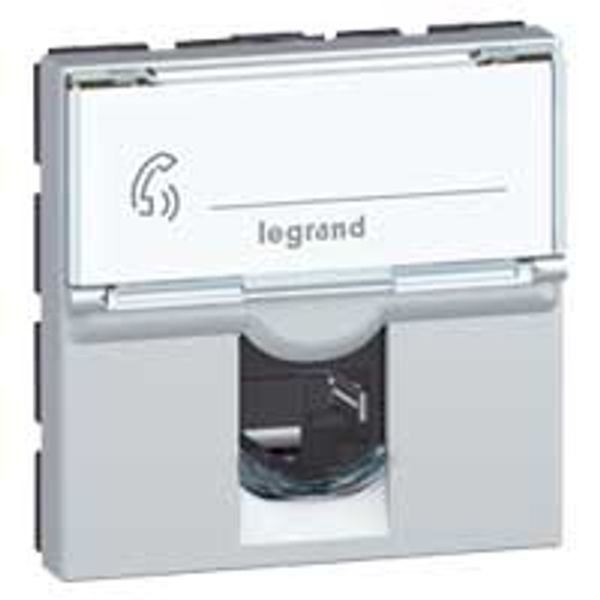

RJ45 Socket Mosaic 2 Modules, Cat 6A, STP, Aluminium
Order only
EAN: 3245060794767
MPN: 079476
Package: 1
Box: 100
Pallet: 1000
Price (excl. VAT)
13,36 €
per unit
MOQ: 10
EDT to our warehouse: 8-10 weeks
Price valid until 01.01.99 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Mosaic 1xRJ45 STP cat6A 2m Alu |
| Brand | Legrand |
| Categories |
Sockets
|
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001264 |
| Assembly arrangement | Basic element with central cover plate |
| Connection type | Insulation displacement connector |
| Type of fastening | Engage (snap) |
| Surface mounting | No |
| Degree of protection (IP) | IP20 |
| Flush-mounted installation | Yes |
| Device width | 45 mm |
Packing details
| Packing level 1 | 3414971395961 |
| Packing level 2 | 3414971395978 |
| Packing level 3 | 3414971016576 |
Other Technical data
| Colour | Aluminium |
| RAL-number | 0 |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Category | 6A (IEC) |
| Duct installation | Yes |
| Shielded buses | Yes |
| Separate strain relief | No |
| Mounting method shielding connection | Other |
| Separate earthing connection | No |
| Type of connector | RJ45 8(8) |
| Floor box/sub-floor mounted | Yes |
| With label space | Yes |
| With dust cover | Yes |
| Compatible with third-party covers | Yes |
| With buses/couplings | Yes |
| Colour coding | Yes |
| Device height | 45 mm |
| Device depth | 39.5 mm |
| Number of modules (module system) | 2 |
