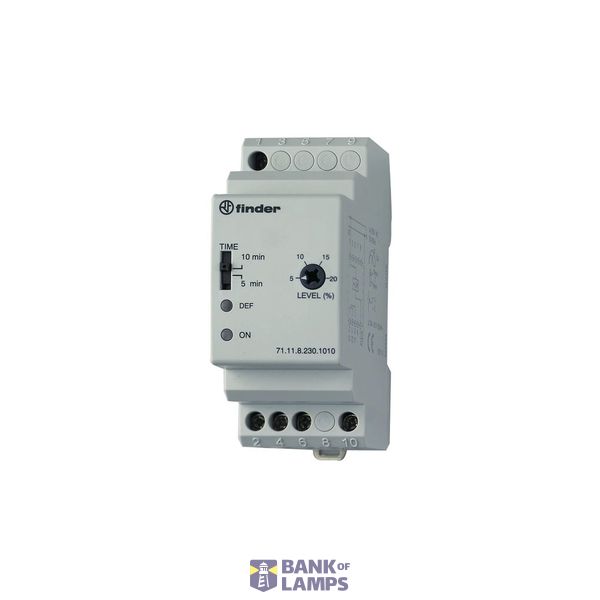

MONITORING RELAY

Name: MONITORING RELAY
Brand: FINDER
Availability: Discontinued

Discontinued Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MONITORING RELAY
Brand	FINDER
ETIM	EC001441
Voltage measuring range	320-460 V
Phase sequence monitoring	No
Phase imbalance monitoring	No
Type of electric connection	Screw connection
Number of contacts as normally closed contact	0

Packing details

Packing level 1	8012823284408
Packing level 2	8012823275956

Other Technical data

Width	35 mm
Height	85 mm
Depth	54.5 mm
With detachable clamps	No
Phase failure detection	No
Function under voltage detection	Yes
Function over voltage detection	Yes
Rated control supply voltage at AC 50 Hz	400 V
Rated control supply voltage at AC 60 Hz	400 V
Max. permitted delay-on energization time	0.5 s
Max. permitted off-delay time	600 s
Min. adjustable off-delay time	300 s
Voltage type for actuating	AC
Number of contacts as normally open contact	0
Number of contacts as change-over contact	1

Description

Monitoring relays Nr.contacts: 1 Contacts configuration: CO Contact Material: AgSnO2 Coil version: AC Volt AC: 400 V. Voltage measurement range: from 320 to 460 V. With detachable clamps: no Phase sequence monitoring: no Phase failure detection: no Function under voltage detection: yes Function over voltage detection: yes Phase imbalance monitoring: no Type of electric connection: Screw connection Max. permitted delay-on energization time: 0.5 s. Max. permitted off-delay time: 600 s. (A): 10 Protection Category: IP 20
