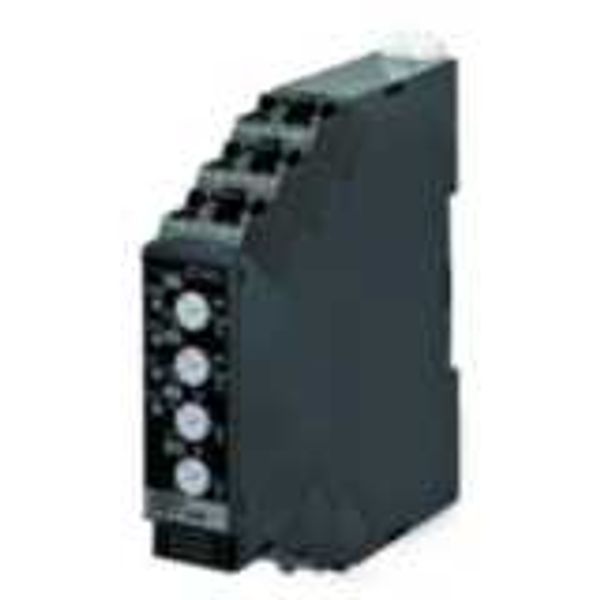

Monitoring relay 17.5mm wide, Single phase over and under current 10 t K8DT0018A
Order only
Price (excl. VAT):
85,92 €
EAN: 4548583773622
MPN: K8DT-AW3TA
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Monitoring relay 17.5mm wide, Single phase over and under current 10 t K8DT0018A |
| Brand | Omron |
| Categories |
Monitoring Relays
|
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 9000 00 |
| Current measuring range | 10-200 A |
| Single-phase under current possible | Yes |
| Function DC-current hysteresis | No |
| Type of electric connection | Spring clamp connection |
| Number of contacts as normally open contact | 1 |
Packing details
| Packing level 1 | 4548583773622, 4548583773622 |
Other Technical data
| Width | 17.5 mm |
| Height | 90 mm |
| Depth | 90 mm |
| External current transformer | Yes |
| With detachable clamps | Yes |
| Single-phase hysteresis possible | Yes |
| Three-phase hysteresis possible | No |
| Three-phase under current possible | No |
| Single-phase overcurrent possible | Yes |
| Three-phase overcurrent possible | No |
| Contains function DC-voltage under current | No |
| Contains function DC-voltage overcurrent | No |
| Max. permitted delay-on energization time | 30 s |
| Min. adjustable delay-on energization time | 0.1 s |
| Max. permitted off-delay time | 0.25 s |
| Min. adjustable off-delay time | 0.25 s |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
Downloads
Description
Monitoring relay 17.5mm wide, Single phase over and under current 10 to 200 A AC /DC, 1 x Transistor, 100-240 VAC
Accessories
Order only
Omron
Current transformer for monitoring relays, high current monitoring cap K8AC0016D
57,33 €
EAN: 4547648140492
MPN: K8AC-CT200L
Package: 1
