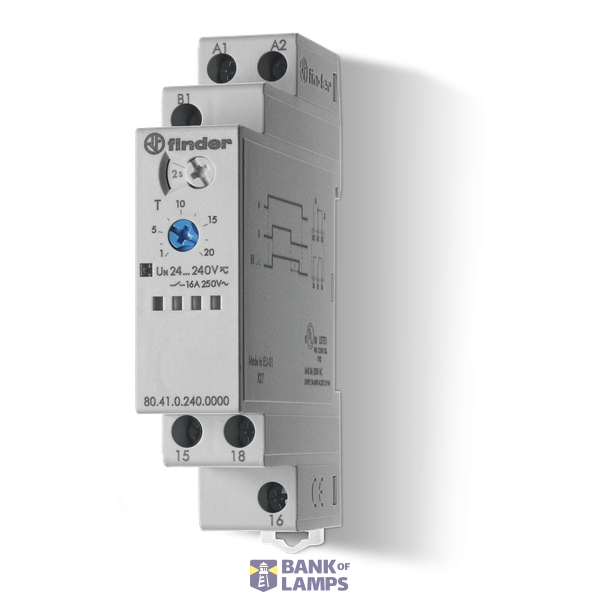

MODULAR TIMER
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | MODULAR TIMER |
| Brand | FINDER |
| ETIM | EC001439 |
| Clock function, starting with pulse, variable | No |
| With semiconductor output | Yes |
| Function delay-on energization | No |
| Time range | 0.1-86400 s |
| Type of electric connection | Screw connection |
| Rated control supply voltage at AC 50 Hz | 240 V |
| Number of outputs, delayed, change-over contact | 1 |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 8012823356044 |
Other Technical data
| Nominal current | 16 A |
| Width | 17.5 mm |
| Height | 84 mm |
| Depth | 56.5 mm |
| Suitable for front mounting | Yes |
| With plug-in socket | No |
| Remote operation possible | No |
| Suitable as remote control | No |
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | No |
| Function floating contact on energization | No |
| Function star-delta | No |
| Function delay on de-energization | No |
| Function floating contact on de-energization | Yes |
| Rated control supply voltage at AC 60 Hz | 240 V |
| Rated control supply voltage at DC | 240 V |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
Description
Modular timers Nr.contacts: 1 Contacts configuration: CO Contact Material: AgNi (A): 16 Coil version: AC/DC Volt AC: 240 V. Volt DC: 240 V. Suitable for front mounting: yes With plug-in socket: no Remote operation possible: no Suitable for remote control: no Function flashing, starting with pause, fixed time: no Function flashing, starting with pulse, fixed time: no With semiconductor output: yes Function delay-on energization: no Function floating contact on energization: no Function star-delta: no Time range: from 0.1 to 86400 s. Function delay on de-energization: no Function floating contact on de-energization: yes Type of electric connection: Screw connection Suitable for DIN rail (top hat rail) mounting: yes Protection Category: IP20
