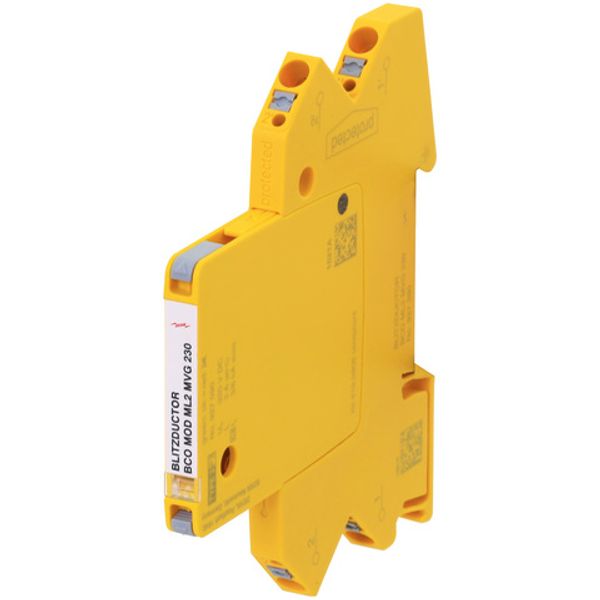

Modular surge arrester for 2 single lines BLITZDUCTORconnect with stat

Name: Modular surge arrester for 2 single lines BLITZDUCTORconnect with stat
Brand: Dehn
Price: 165.120 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

165,12 €

This price is valid until 24.12.26

EAN: 4013364466524

MPN: 927290

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Modular surge arrester for 2 single lines BLITZDUCTORconnect with stat
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3010 00
Max. continuous voltage AC	250 V
Nominal discharge surge current (8/20)	6 kA
Nominal load current	3 A
Voltage protection level core/core	1300 V
Max. continuous voltage DC	320 V
Degree of protection (IP)	IP20
Nominal voltage DC	230 V

Packing details

Packing level 1

4013364466524, 4013364466524

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Connection 1	Push-in terminal
Number of conductors (without earthing)	2
Voltage protection level core/earth	2300 V
Signalling at the device	Optic
Pro-active thermo-control	Yes
Assembly width	6 mm
Signal disconnection	Yes
Earthing via	DIN rail (top hat rail)

Downloads

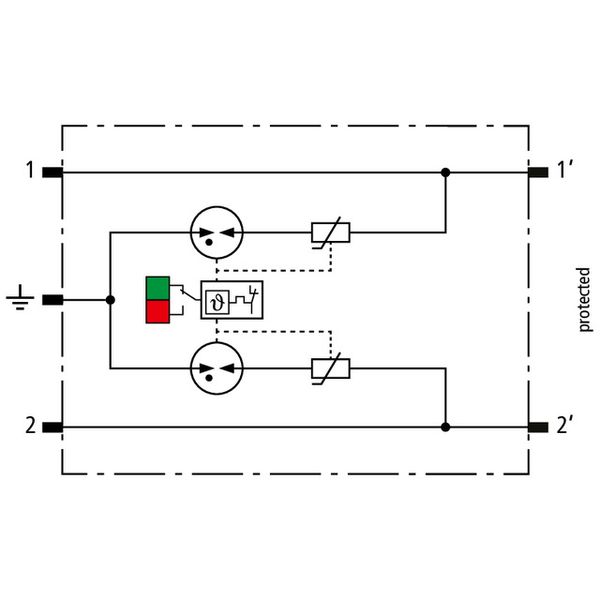

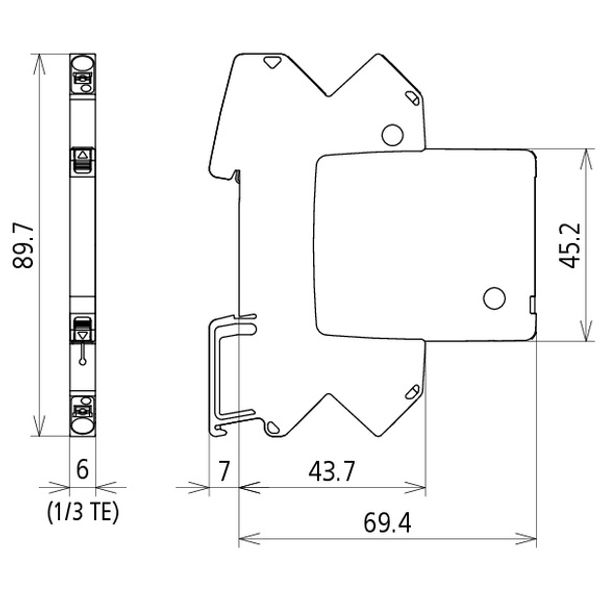

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Space-saving, modular surge arrester with a width of 6 mm and push-in connection technology with status indication for protecting 2 lines of stranded unearthed signal interfaces with a nominal voltage of 230 V AC. With signal disconnection for maintenance purposes. Meets, amongst other things, the requirements for signalling systems in the rail industry (compliant with DB Ril 819.0808).
