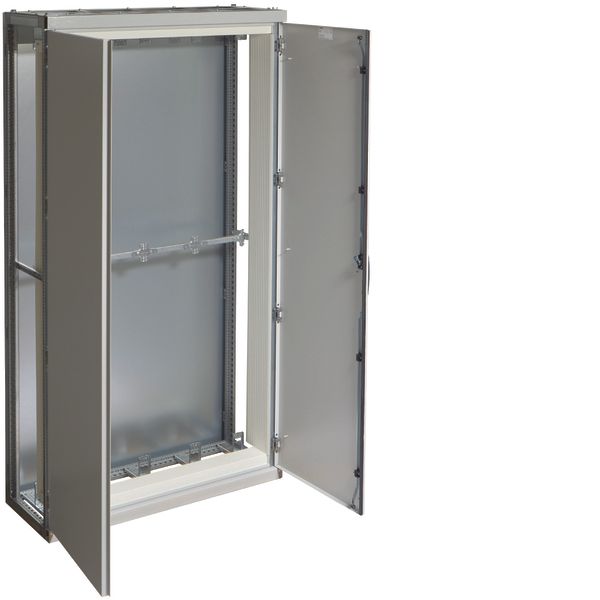

Modular stand-alone distrib. IP41 1100x2000x400 120° RAL7035 rear wall
Order only
Price (excl. VAT):
1 828,93 €
EAN: 7611919291736
MPN: FG24WE
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Modular stand-alone distrib. IP41 1100x2000x400 120° RAL7035 rear wall |
| Brand | Hager |
| Categories |
Cabinet Enclosures
|
| Harmonized System Code | 8538 1000 00 |
| ETIM | EC000058 |
| Circuit integrity | None |
| Impact strength | IK10 |
| Degree of protection (IP) | IP41 |
Packing details
| Packing level 1 | 7611919291736 |
Other Technical data
| Mounting method | Floor installation |
| Protection class | I |
| Colour | Grey |
| Width | 1100 mm |
| Height | 2000 mm |
| Depth | 400 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Surface protection | Powder coating |
| Built-in depth | 400 mm |
| Number of rows | 2 |
| Type of cover | Door |
| Number of conduit inlets | 6 |
| Extension possible | Yes |
| Inner depth | 396 mm |
| Housing material | Steel |
| Width in number of modular spacings | 48 |
| Suitable for outdoor use | No |
| Type of door | Double |
| Transparent cover/door | No |
| With lock | Yes |
| Suitable for lightning protection | No |
| Nominal current (In) | 1600 A |
| Material plate thickness cabinet | 2 mm |
| Material plate thickness door/cover | 2 mm |
| Cover model | With notch |
| Number of openings for flange plates | 8 |
