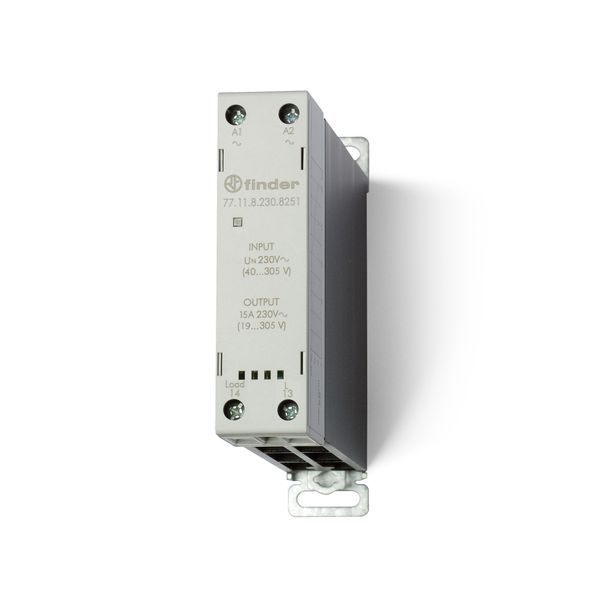

Modular SSR.22,5mm.1NO output 15A/230VAC/input 230VAC Random switch-on (77.11.8.230.8251)
Order only
Minimal order quantity: 5
Price (excl. VAT):
61,12 €
per pcs
Subtotal: 305,60 €
MOQ: 5
EAN: 8012823377551
MPN: 771182308251
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Modular SSR.22,5mm.1NO output 15A/230VAC/input 230VAC Random switch-on (77.11.8.230.8251) |
| Brand | FINDER |
| Categories |
Solid State Relays
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4900 00 |
| Rated operation current Ie at AC-1 | 15 A |
| Voltage type for actuating | AC |
Packing details
| Packing level 1 | 8012823377568 |
| Packing level 2 | 8012823377551 |
Other Technical data
| Number of phases | 1 |
| Modular version | Yes |
| Rated control supply voltage at AC 50 Hz | 230 V |
| Rated control supply voltage at AC 60 Hz | 230 V |
| Operating voltage | 19-305 V |
| Switching at zero-crossing | No |
Downloads
Description
Modular solid state relay Nr.contacts: 1 Contacts configuration: NO Number of phases: 1 Modular version: yes Volt AC: 230 V. Operating voltage: from 19 to 305 V. Rated operation current Ie at AC-1: 15 A. Coil version: AC Switching at zero-crossing: no Accessories: Separatore per montaggio su barra
