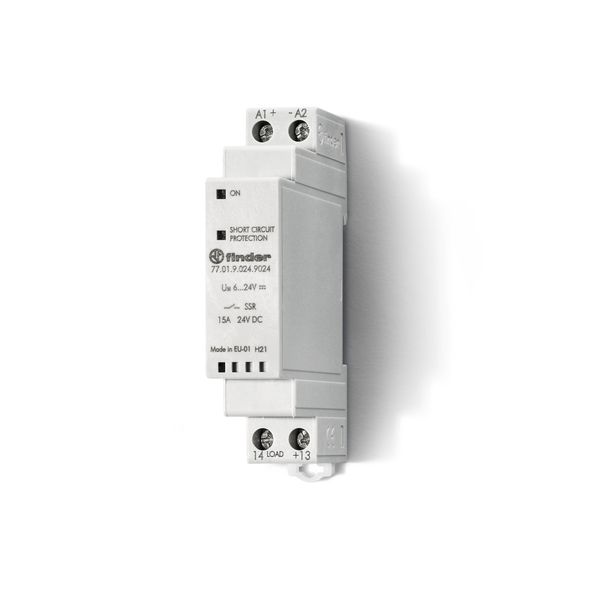

Modular SSR.17,5mm.1NO output 15A/24VDC/input 24VDC (77.01.9.024.9024)

Order only Minimal order quantity: 5

Price (excl. VAT):

65,94 € per pcs

This price is valid until 31.12.25

Subtotal: 329,70 € MOQ: 5

EAN: 8012823410999

MPN: 770190249024

Package: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	Modular SSR.17,5mm.1NO output 15A/24VDC/input 24VDC (77.01.9.024.9024)
Brand	FINDER
Categories	Solid State Relays
Country of origin	IT
Harmonized System Code	8536 4900 00
Rated operation current Ie at AC-1	15 A
Voltage type for actuating	DC

Packing details

Packing level 1	8012823411002
Packing level 2	8012823410999

Other Technical data

Number of phases	1
Modular version	Yes
Rated control supply voltage at DC	24 V
Operating voltage	16-32 V
Switching at zero-crossing	No

Downloads

Product picture

Description

Modular solid state relay Nr.contacts: 1 Contacts configuration: NO Number of phases: 1 Modular version: yes Volt DC: 24 V. Operating voltage: from 16 to 32 V. Rated operation current Ie at AC-1: 15 A. Coil version: DC Switching at zero-crossing: no Accessories: Adaptor for panel mounting
