MODULAR INTERFACE RELAY

Name: MODULAR INTERFACE RELAY
Brand: FINDER
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MODULAR INTERFACE RELAY
Brand	FINDER
ETIM	EC001437
Nominal current	8 A
Type of switch contact	Single contact
Type of electric connection	Screw connection
Degree of protection (IP)	IP20
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823427409

Other Technical data

With detachable clamps	Yes
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	Yes
Rated control supply voltage at DC	24 V
Number of contacts as change-over contact	2

Description

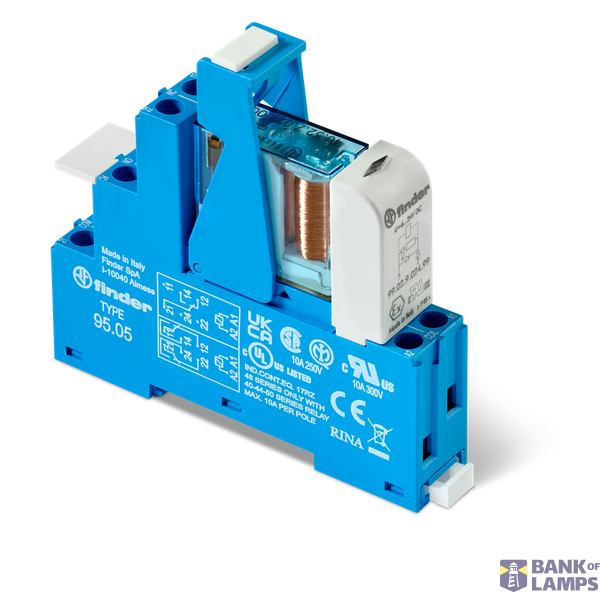

Relay interface modules (A): 8 Nr.contacts: 2 Contacts configuration: CO Contact Material: AgNi+Au Type of electric connection: Screw connection Coil version: DC Volt DC: 24 V. Polarized Mono stable Protection category: IP20 Options: Green LED+diode Accessories: Jumper link
