MODULAR INTERFACE RELAY

Order only Minimal order quantity: 10

Price (excl. VAT):

21,23 € per pcs

This price is valid until 31.12.25

Subtotal: 212,30 € MOQ: 10

EAN: 8012823403403

MPN: 58P390240050SMA

Package: 10

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	MODULAR INTERFACE RELAY
Brand	FINDER
Categories	Relay DC 24v
Harmonized System Code	8536 4900 00
Nominal current	10 A
Type of switch contact	Single contact
Type of electric connection	Other
Degree of protection (IP)	IP20
With LED indication	Yes
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823403403

Other Technical data

Width	31 mm
Height	95.5 mm
Depth	67.5 mm
With detachable clamps	Yes
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	Yes
Rated control supply voltage at DC	24 V
Material of contact surface	Untreated
Material contact	Other copper alloys
Number of contacts as change-over contact	3
Material of contact insert	Thermoplastic

Description

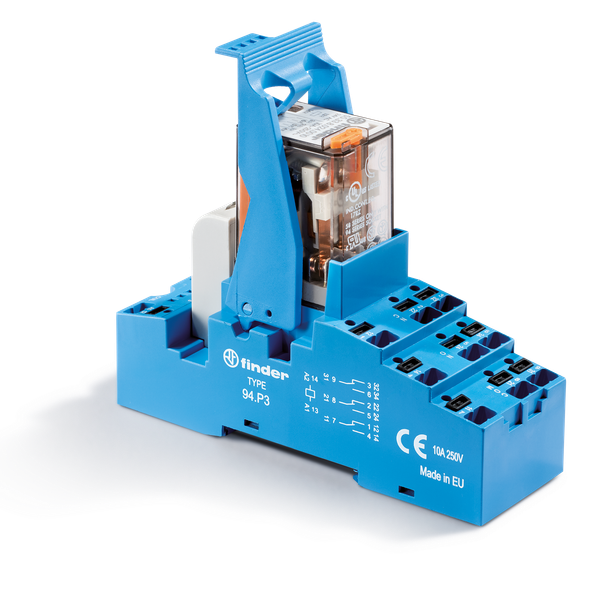

Relay interface modules (A): 10 A. Nr.contacts: 3 Contacts configuration: CO Contact Material: AgNi Type of electric connection: Other Coil version: DC Volt DC: 24 V. Polarized Mono stable Protection category: IP20 With LED indication: yes Options: Green LED+diode Accessories: Jumper link
