MODULAR INTERFACE RELAY

Order Only

Price (excl. VAT):

19,15 € per pcs

This price is valid until 31.12.25

EAN: 8012823246543

MPN: 486180240060SPB

Package: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	MODULAR INTERFACE RELAY
Brand	FINDER
Categories	Relay AC 24v
Harmonized System Code	8536 4900 00
Nominal current	16 A
Type of switch contact	Single contact
Type of electric connection	Screw connection
Rated control supply voltage at AC 50 Hz	24 V
Degree of protection (IP)	IP20
With LED indication	Yes
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823246543

Other Technical data

Width	15.8 mm
Height	78.6 mm
Depth	71.8 mm
With detachable clamps	Yes
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	Yes
Rated control supply voltage at AC 60 Hz	24 V
Material of contact surface	Untreated
Material contact	Other copper alloys
Number of contacts as change-over contact	1
Material of contact insert	Thermoplastic

Description

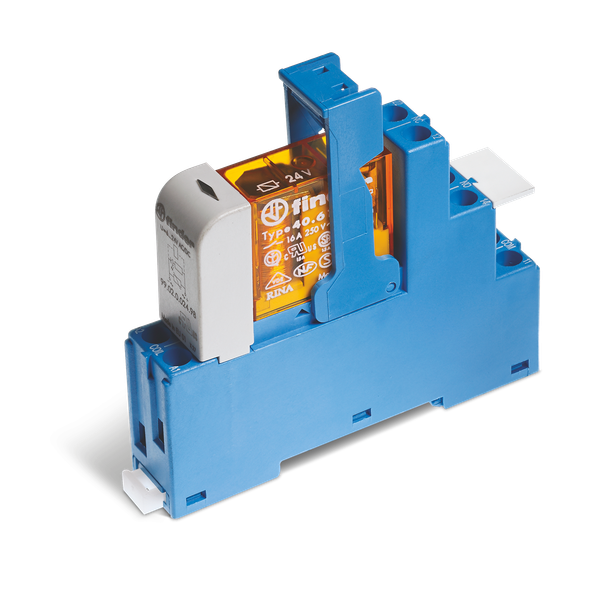

Relay interface modules (A): 16 A. Nr.contacts: 1 Contacts configuration: CO Contact Material: AgCdO Type of electric connection: Screw connection Coil version: AC Volt AC: 24 V. Polarity free Mono stable Protection category: IP20 With LED indication: yes Options: Green LED+varistor
