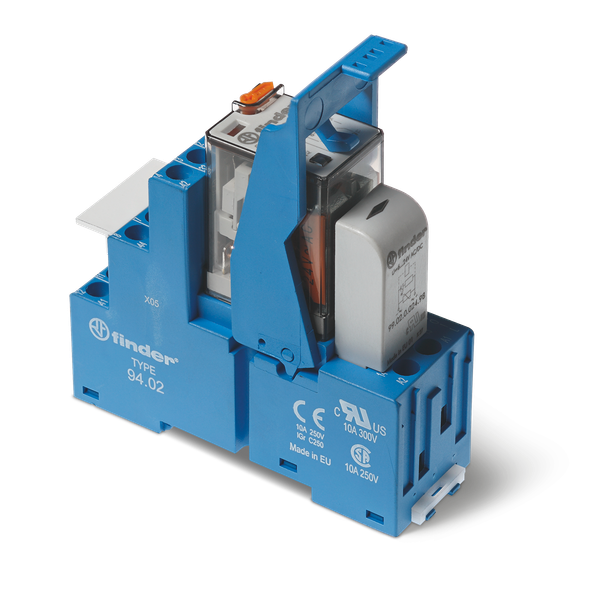

Relay interface module; 2 x 10A (~48V AC) screw terminals

Order only Minimal order quantity: 10

Price (excl. VAT):

19,61 € per pcs

This price is valid until 31.12.25

Subtotal: 196,10 € MOQ: 10

EAN: 8012823306803

MPN: 583280480060SMA

Package: 10

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	Relay interface module; 2 x 10A (~48V AC) screw terminals
Brand	FINDER
Categories	Electromechanical Relays
Harmonized System Code	8536 4900 00
Nominal current	10 A
Type of switch contact	Single contact
Type of electric connection	Screw connection
Rated control supply voltage at AC 50 Hz	48 V
Degree of protection (IP)	IP20
With LED indication	Yes
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823306803

Other Technical data

Width	27 mm
Height	74.9 mm
Depth	72 mm
With detachable clamps	Yes
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	Yes
Rated control supply voltage at AC 60 Hz	48 V
Material of contact surface	Untreated
Material contact	Other copper alloys
Number of contacts as change-over contact	2
Material of contact insert	Thermoplastic

Description

Relay interface modules (A): 10 A. Nr.contacts: 2 Contacts configuration: CO Contact Material: AgNi Type of electric connection: Screw connection Coil version: AC Volt AC: 48 V. Polarity free Mono stable Protection category: IP20 With LED indication: yes Options: Green LED+varistor Accessories: Jumper link
