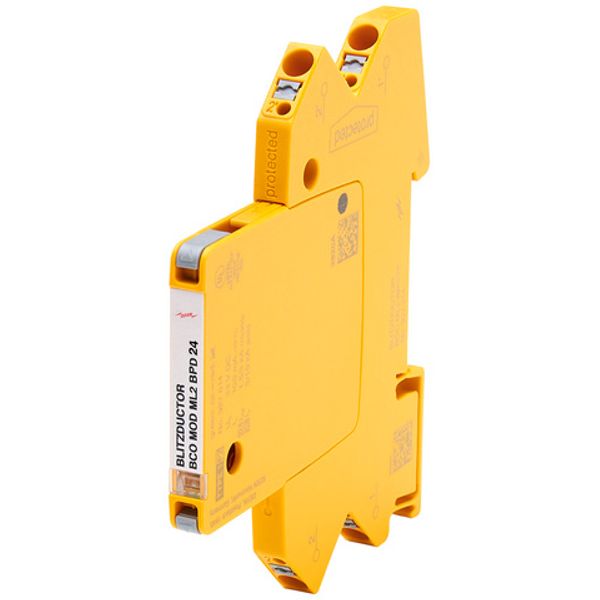

Modular combined arrester for 1 pair BLITZDUCTORconnect with fault ind

Name: Modular combined arrester for 1 pair BLITZDUCTORconnect with fault ind
Brand: Dehn
Price: 204.000 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

204,00 €

This price is valid until 30.06.26

EAN: 4013364473003

MPN: 927214

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Modular combined arrester for 1 pair BLITZDUCTORconnect with fault ind
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3010 00
Connection 1	Push-in terminal
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364473003, 4013364473003

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)	3 kA
Number of conductors (without earthing)	2
Max. continuous voltage AC	23.3 V
Nominal discharge surge current (8/20)	10 kA
Nominal load current	0.1 A
Max. continuous voltage DC	33 V
Pro-active thermo-control	Yes
Assembly width	6 mm
Signal disconnection	Yes
Earthing via	DIN rail (top hat rail)

Downloads

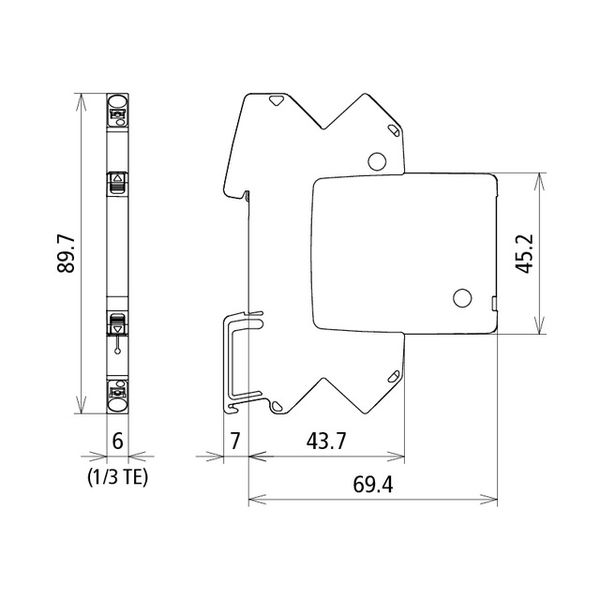

Product data sheet Dimensioned drawing Deep link REACH

Description

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair in 24 V DC systems. Also suitable for use with earthed negative pole; integrated PTC resistors allow for secure resetting of the arrester after interference in the system circuit with short-circuit currents of up to 40 A. With signal disconnection for maintenance purposes.
