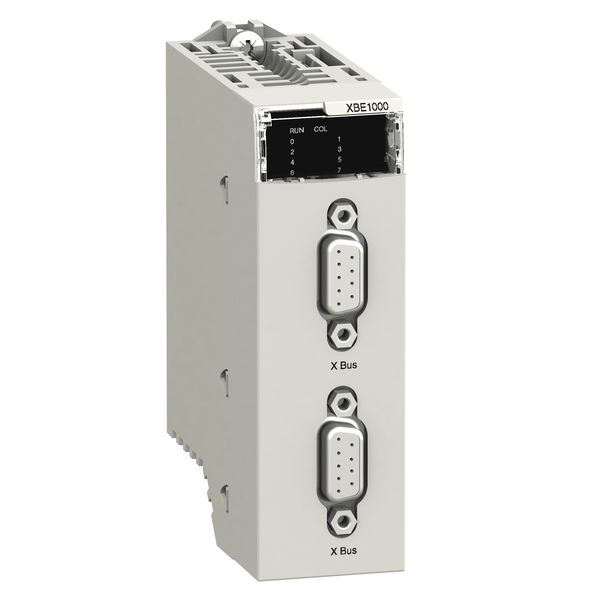

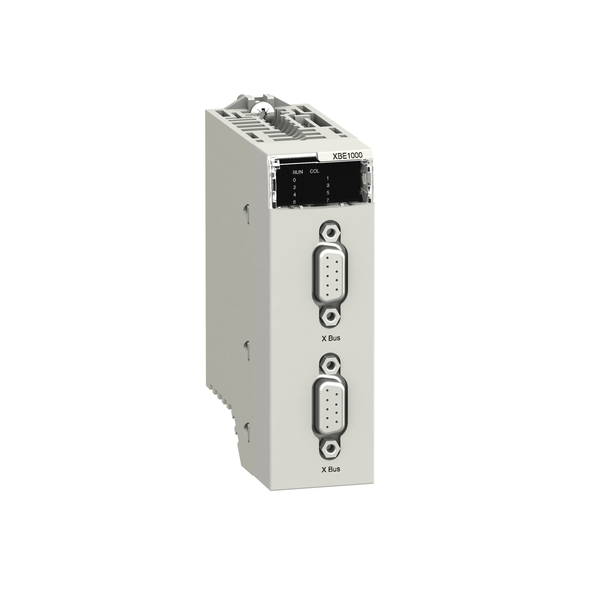

Modicon M340 automation platform ruggedized backplane expander f multirack conf

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

379,68 €

This price is valid until 31.12.25

EAN: 3595864009728

MPN: BMXXBE1000H

Package: 1

Box: 15

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Modicon M340 automation platform ruggedized backplane expander f multirack conf
Brand	Schneider Electric
Categories	PLC Accessories
Country of origin	FR
Type of voltage (input voltage)	AC/DC
With integrated power supply	Yes
Input voltage at DC	3.3-24 V
Max. input current AC 50 Hz	0 A
Max. input current AC 60 Hz	0 A
Max. input current DC	0 A

Packing details

Packing level 1	3595864009728
Packing level 2	3595864009722

Other Technical data

Width	32 mm
Height	103.7 mm
Depth	90 mm
Suitable for safety functions	No
Number of slots	0
Redundancy	No
Rail mounting possible	No
Explosion safety category for gas	None
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	No
Appendant operation agent (Ex ib)	No
Front built-in possible	No
Rack-assembly possible	Yes
Wall mounting/direct mounting	No
Max. output current AC 50 Hz	0 A
Max. output current AC 60 Hz	0 A
Max. output current DC	160 A
Performance level according to EN ISO 13849-1	None
SIL according to IEC 61508	None

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Declaration DOC CE (Declaration of conformity CE) Technical manual

Description

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This ruggedized backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for severe environments, medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP1200, BMXXBP0800, BMXXBP0600 and BMXXBP0400 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
