Relay module 7S.34 forcibly guided contacts 2NO+2NC 6A 24VDC AgSnO₂

Order only Minimal order quantity: 5

Price (excl. VAT):

90,95 € per pcs

This price is valid until 31.01.26

Subtotal: 454,75 € MOQ: 5

EAN: 8012823420639

MPN: 7S3490244220

Package: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	Relay module 7S.34 forcibly guided contacts 2NO+2NC 6A 24VDC AgSnO₂
Brand	FINDER
Categories	Safety Relays
Country of origin*	IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 4900 00
Model	Expansion device
Number of outputs, safety related, undelayed, with contact	2
Type of electric connection	Screw connection
Rail mounting possible	Yes
Performance level according to EN ISO 13849-1	Level d
SIL according to IEC 61508	2

Packing details

Packing level 1	8012823420646
Packing level 2	8012823420639

Other Technical data

Width	22.5 mm
Height	78.8 mm
Depth	96 mm
With approval according to UL	Yes
With detachable clamps	No
With start input	No
With feedback circuit	Yes
Rated control supply voltage at DC	16.8-30 V
With muting function	No
With approval for BG BIA	No
Voltage type for actuating	DC
Evaluation inputs	2-channel
With approval for TÜV	No

Downloads

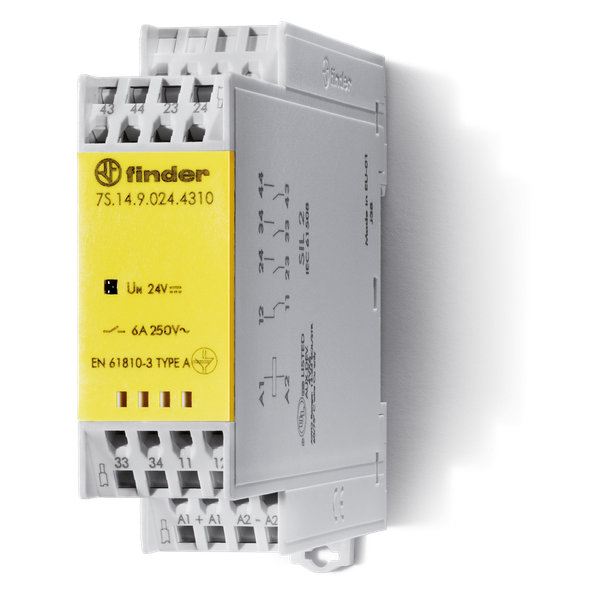

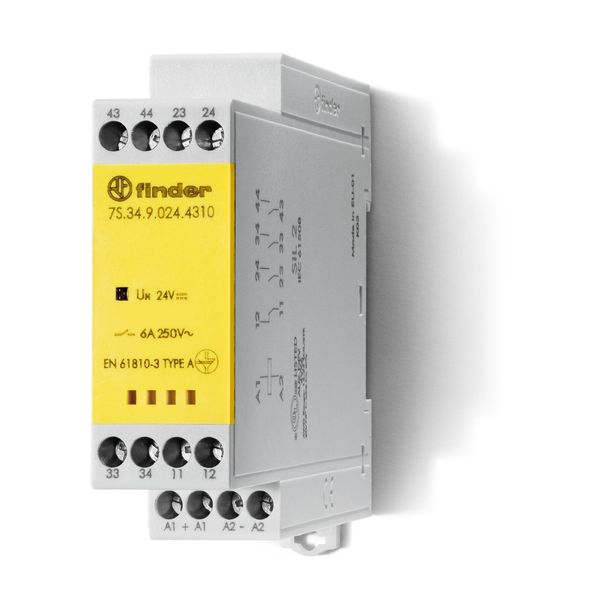

Product picture

Description

Modular relays with forcibly guided contacts Nr.contacts: 2NO+2NC Contact Material: AgSnO2 Model: Expansion device With detachable clamps: no Type of electric connection: Screw connection Rail mounting possible: yes Coil version: DC Volt DC: from 16.8 to 30 V. With approval according to UL: yes Evaluation inputs: 2-channel With start input: no With feedback circuit: yes Number of outputs, safety related, undelayed, with contact: 2 With approval for BG BIA: no Performance level according to EN ISO 13849-1: Level d SIL according to IEC 61508: 2 (A): 6 Protection Category: IP20 With approval for TÜV: no
