Mod. 1FM output 200W 2 wires+2inputs KNX
Order Only
Price (excl. VAT):
105,053 €
per pcs
EAN: 3250615989055
MPN: TRM690G
Package: 1
Pallet: 1440
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Mod. 1FM output 200W 2 wires+2inputs KNX |
| Brand | Hager |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Harmonized System Code | 8526 9200 00 |
| Bus system KNX | Yes |
| With bus connection | Yes |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | Yes |
Packing details
| Packing level 1 | 3250615989055, 3250615989055 |
| Packing level 2 | 3250615989055 |
| Packing level 3 | 3250615989055 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Rated current | 0.85 A |
| Output power | 200 W |
| Rated operating voltage | 230 V |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| Max. switching power | 200 W |
| Max. number of switching contacts | 1 |
| Width in number of modular spacings | 0 |
| Max. switching current | 1 A |
| Other bus systems | None |
| Suitable for C-load | No |
| Different phases connectable | No |
| Local operation/hand operation | Yes |
| Degree of protection (IP) | IP20 |
| With LED indication | Yes |
| Modular expandability | No |
| Bus module detachable | No |
| Min. depth of built-in installation box | 40 mm |
Description

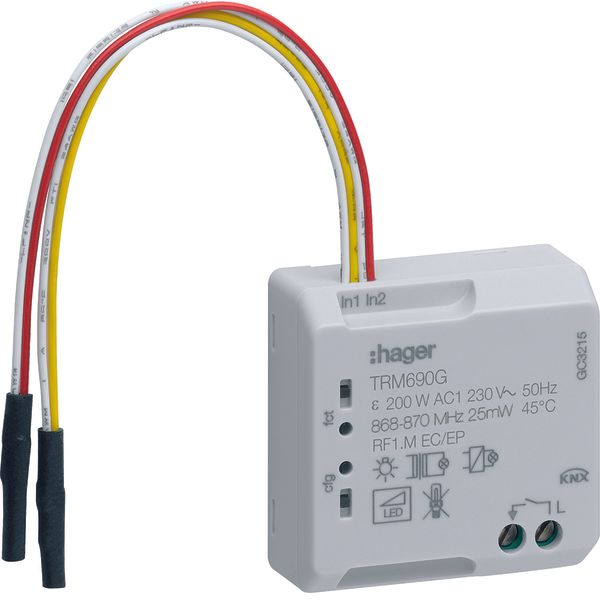

Module 1 flush mounted output 200W, 2 wires + 2 inputs, KNX radio
