MMV clamp Cu-St/tZn f. Rd 6-8mm with truss head screw and nut

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

5,63 €

This price is valid until 24.12.25

EAN: 4013364034402

MPN: 390267

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	MMV clamp Cu-St/tZn f. Rd 6-8mm with truss head screw and nut
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Type of fastening screws	Flat round screw
Material	Copper/steel
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	6-8 mm

Packing details

Packing level 1

4013364034402, 4013364034402

Other Technical data

Type of connector	T-/cross-/parallel connector
Diameter round conductor 2	6-8 mm

Downloads

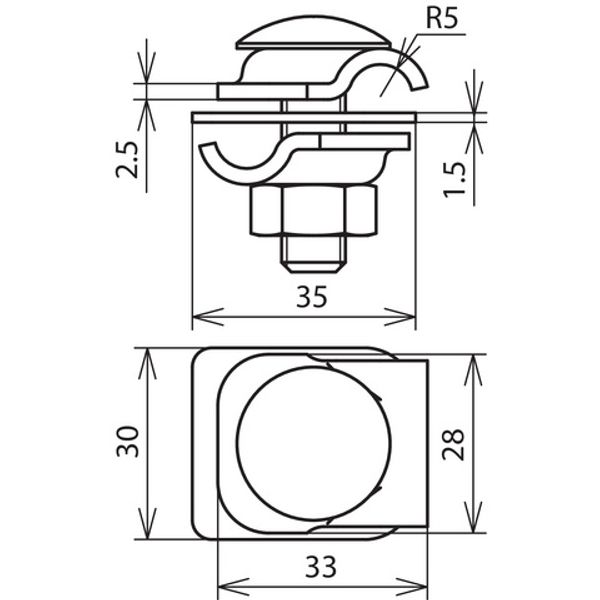

Product data sheet Dimensioned drawing

Description

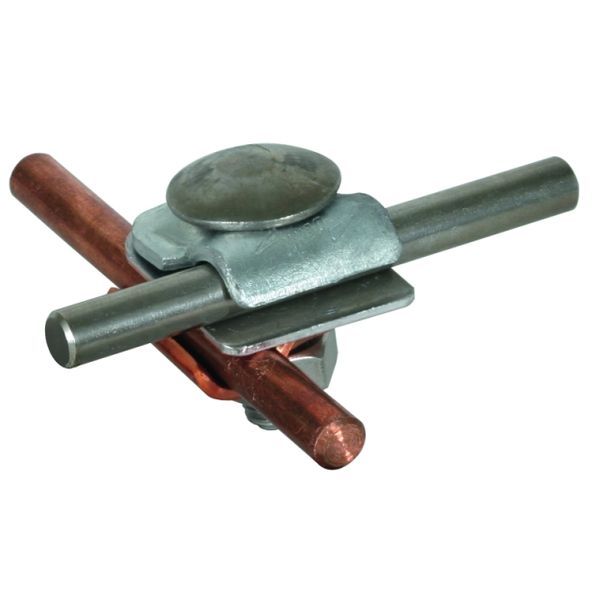

Bimetallic mini multipurpose connecting clamp according to EN 62561-1, for universal use as a cross clamp, T clamp, and parallel clamp for round conductors. Three-piece with hexagon screw and thread in the base part.
