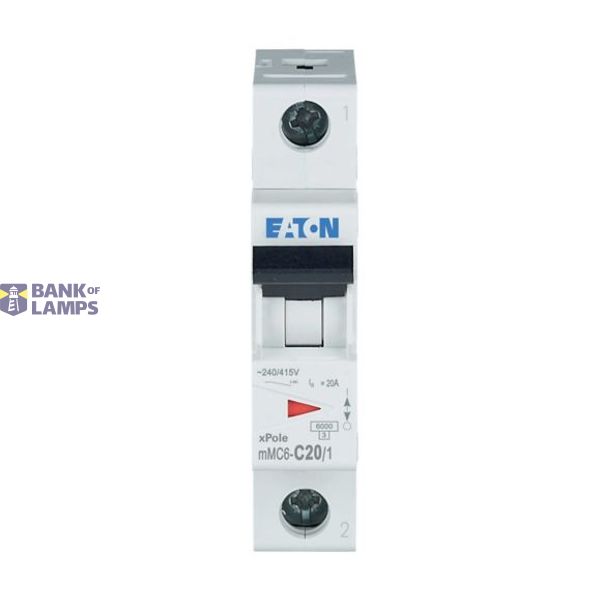

mMC6_C20/1 Eaton Moeller series xPole (Style 5) - mMC4/6/M MCB
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | mMC6_C20/1 Eaton Moeller series xPole (Style 5) - mMC4/6/M MCB |
| Brand | EATON |
| ETIM | EC000042 |
| Rated current | 20 A |
| Rated voltage | 240 V |
| Release characteristic | C |
| Width in number of modular spacings | 1 |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Packing details
| Packing level 1 | 9010238200326 |
| Packing level 2 | 9010238200470 |
| Packing level 3 | 9010238200487 |
Other Technical data
| Voltage type | AC/DC |
| Built-in depth | 75.5 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 440 V |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Ambient temperature during operating | -25-75 °C |
| Flush-mounted installation | No |
| Additional equipment possible | No |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 15 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
Description
Miniature circuit breaker (MCB), mMC6, 1-pole, trip type: C, rated operational current In: 20 A, rated switching capacity according to IEC/EN 60898-1: 6 kA, switchgear for residential and non-residential applications
