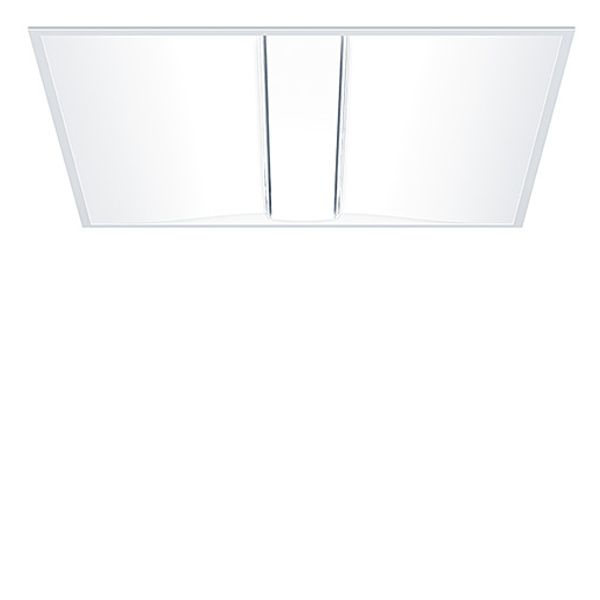

MLinf EL LED3600-840 M625Q LDO KA WH - Mellow light recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9008709901780
MPN: 42185201
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | MLinf EL LED3600-840 M625Q LDO KA WH - Mellow light recessed luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Country of origin | RS |
| Harmonized System Code | 9405 1190 00 |
| Width | 623 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 623 mm |
| Height/depth | 77 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 30.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 3600 lm |
| Luminaire efficacy | 120 lm/W |
Packing details
| Packing level 1 | 9008709901780, 9008709901780 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 623 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Steel |
| Built-in length | 623 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 19.6 |
| Photobiological safety according to EN 62471 | RG0 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 18 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 85 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 75 mm |
| Power factor | 0.83 |
Downloads
Description
LED recessed ceiling luminaire with digitally dimmable, DC voltage-compliant LED converter for DALI control with two DALI addresses for separate control of central and side area; Luminaire input power: 30.1 W. LED service life lasts 100000 h before luminous flux is reduced to 85% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 3600 lm, Luminaire efficacy: 120 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. Despite maximum quality control, recognisable colour differences between luminaires with the predefined binning may occur with cluster applications. To achieve a uniform appearance, we recommend consulting a lighting consultant with intended cluster or continuous row installations. Diffuse side areas for pleasant ambient lighting and high quality lenticular structure for central area for glare-free lighting with UGR < 19 and L65 < 3000 cd/m² and homogeneous appearance, internal 5-pole plug-in terminal block (can be connected from inside or outside); can be installed as a single luminaire or in a cluster; designed to fit in ceiling apertures cut with a saw and in modular ceilings with concealed or visible joist system; fixing set and strain relief must be ordered separately; Luminaire with external electrical connection. Luminaire wired with halogen-free leads; Dimensions: 623 x 623 x 77 mm, weight: 5.8 kg
