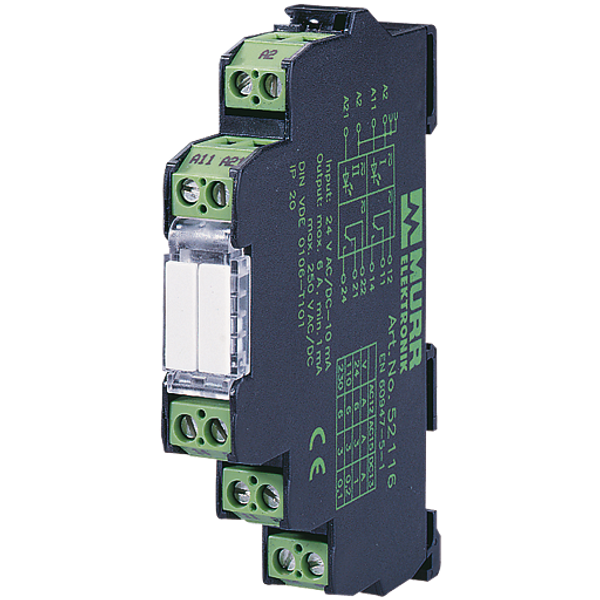

MIRO 12.4 24-230V-1U OUTPUT RELAY IN: 230 VAC/DC - OUT: 250VAC/DC / 6A image 1
Murrelektronik

MIRO 12.4 24-230V-1U OUTPUT RELAY IN: 230 VAC/DC - OUT: 250VAC/DC / 6A

Order Only
Price (excl. VAT):
48,41 €
This price is valid until 24.12.25
EAN: 4048879027014
MPN: 52160
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name MIRO 12.4 24-230V-1U OUTPUT RELAY IN: 230 VAC/DC - OUT: 250VAC/DC / 6A
Brand Murrelektronik
Categories Relay DC 24v
Country of origin CZ
Harmonized System Code 8536 4900 00
Type of switch contact Single contact
Type of electric connection Screw connection
Rated control supply voltage at AC 50 Hz 24-230 V
Degree of protection (IP) IP20
With LED indication Yes
Voltage type for actuating AC/DC

Packing details

Packing level 1 4048879027014, 4048879027014

Other Technical data

Width 12.4 mm
Height 90 mm
Depth 65 mm
With detachable clamps No
Drive, polarization Polarized
Drive, switching attitude Mono stable
With forced-guided contacts No
Complete with socket Yes
Rated control supply voltage at DC 24-230 V
Material of contact surface Gold
Material contact Copper
Number of contacts as change-over contact 1
Material of contact insert Thermoplastic

Downloads

Deep link REACH

Description

MIRO 12.4 24-230V-1U OUTPUT RELAY IN: 230 VAC/DC - OUT: 250 VAC/DC / 6 A 1 C/O contact - 12,4 mm screw-type terminal
