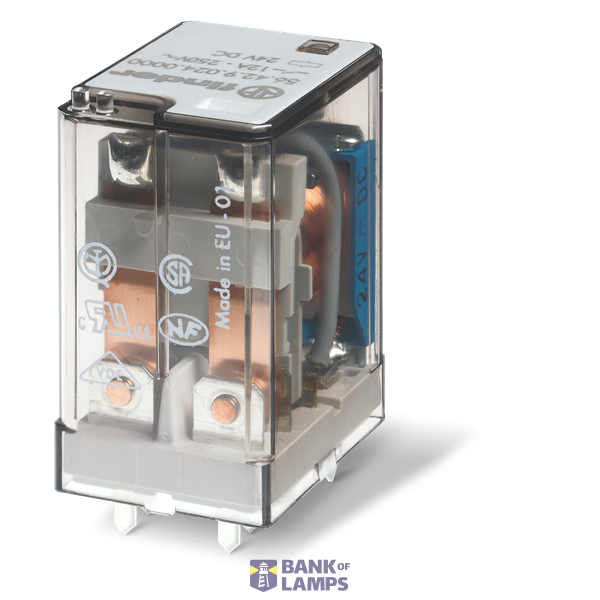

MINIATURE POWER RELAY

Name: MINIATURE POWER RELAY
Brand: FINDER
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MINIATURE POWER RELAY
Brand	FINDER
ETIM	EC001437
Nominal current	12 A
Type of switch contact	Single contact
Type of electric connection	PCB connection
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823039930

Other Technical data

Width	20.7 mm
Height	36.8 mm
Depth	27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	No
Rated control supply voltage at DC	24 V
Number of contacts as change-over contact	2

Description

Miniature power relays (A): 12 Nr.contacts: 2 Contacts configuration: CO Contact Material: AgNi Type of electric connection: PCB connection Coil version: DC Volt DC: 24 V. Polarity free Mono stable Environmental Protection: RT I.
