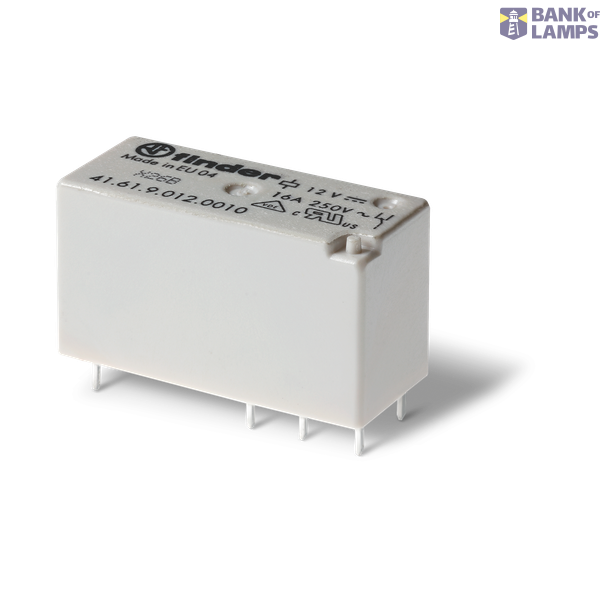

MINIATURE PCB RELAY

Name: MINIATURE PCB RELAY
Brand: FINDER
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MINIATURE PCB RELAY
Brand	FINDER
ETIM	EC001437
Nominal current	16 A
Type of switch contact	Single contact
Type of electric connection	PCB connection
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823354095

Other Technical data

Width	12.6 mm
Height	15.7 mm
Depth	29 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	No
Number of contacts as change-over contact	1

Description

Low profile PCB relays (A): 16 Nr.contacts: 1 Contacts configuration: CO Contact Material: AgNi Type of electric connection: PCB connection Coil version: DC Polarity free Mono stable Environmental Protection: RT II. Accessories: Socket S.93 and S.95
