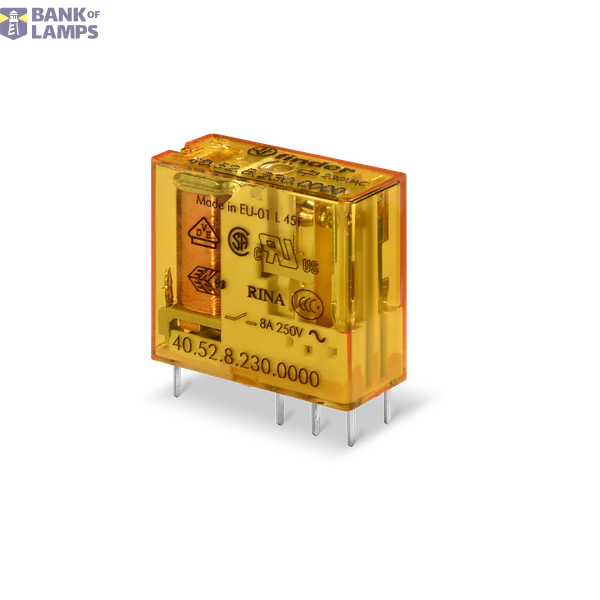

MINIATURE PCB RELAY

Name: MINIATURE PCB RELAY
Brand: FINDER
Availability: Discontinued

Discontinued Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MINIATURE PCB RELAY
Brand	FINDER
ETIM	EC001437
Nominal current	8 A
Type of switch contact	Single contact
Type of electric connection	Plug-in connection
Rated control supply voltage at AC 50 Hz	110 V
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1	8012823134109
Packing level 2	8012823115108

Other Technical data

Width	12.4 mm
Height	25 mm
Depth	29 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	No
Rated control supply voltage at AC 60 Hz	110 V
Number of contacts as change-over contact	2

Description

PCB/Plug-in relays (A): 8 Nr.contacts: 2 Contacts configuration: CO Contact Material: AgCdO Type of electric connection: Plug-in connection Coil version: AC Volt AC: 110 V. Polarity free Mono stable Environmental Protection: RT III. Accessories: Socket S.95
