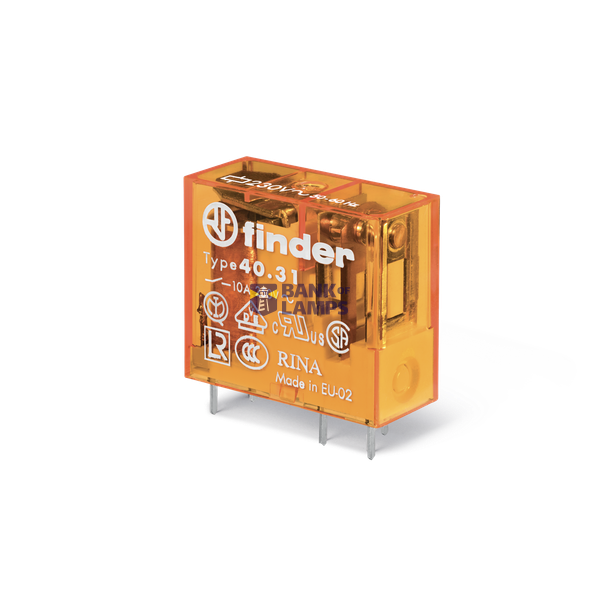

MINIATURE PCB RELAY

Name: MINIATURE PCB RELAY
Brand: FINDER
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	MINIATURE PCB RELAY
Brand	FINDER
ETIM	EC001437
Nominal current	10 A
Type of electric connection	Plug-in connection
Rated control supply voltage at AC 50 Hz	5 V
Voltage type for actuating	AC/DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1	8012823126432
Packing level 2	8012823093277

Other Technical data

Width	12.4 mm
Height	25 mm
Depth	29 mm
Drive, polarization	Polarized
Drive, switching attitude	Bistable
With forced-guided contacts	No
Complete with socket	No
Rated control supply voltage at AC 60 Hz	5 V
Rated control supply voltage at DC	5 V
Number of contacts as change-over contact	1

Description

PCB/Plug-in relays (A): 10 Nr.contacts: 1 Contacts configuration: CO Contact Material: AgCdO. Type of electric connection: Plug-in connection Coil version: AC/DC Volt AC: 5 V. Volt DC: 5 V. Polarized Bistable Environmental Protection: RT II Accessories: Socket S.95
