ETIMAT 10 3p+N C25

Name: ETIMAT 10 3p+N C25
Brand: ETI
Availability: PreOrder

In vendor's stock Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT 10 3p+N C25
Brand	ETI
ETIM	EC000042
Rated current	25 A
Rated voltage	400 V
Release characteristic	C
Width in number of modular spacings	4
Number of poles (total)	4

Packing details

Packing level 1	3838895267119, 3838895267119
Packing level 2	3838895280804, 3838895280804
Packing level 3	3838895280811, 3838895280811
Packing level 4	3838895267119, 3838895267119

Other Technical data

Voltage type	AC/DC
Built-in depth	68 mm
Current limiting class	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	Yes
Additional equipment possible	Yes

Description

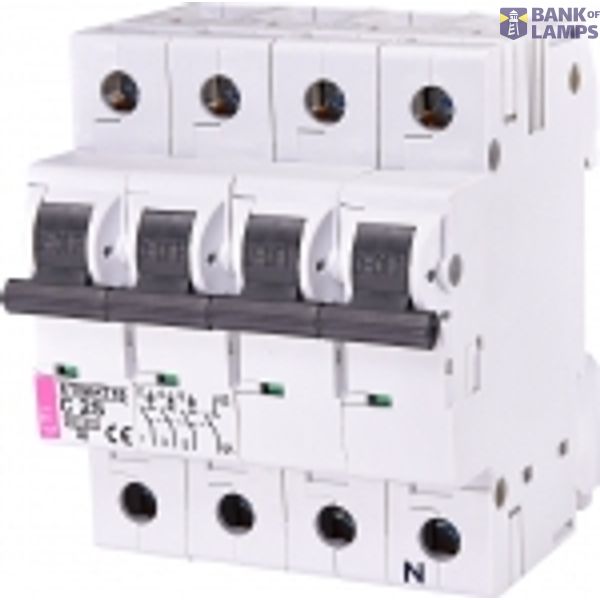

Miniature circuit breaker, ETIMAT 10 3p+N C25, No. Of poles 4, Catalogue Group ETIMAT 10 Miniature circuit breakers 6kA nad 10kA, Function MCB, Rated current (A) 25, Short circuit capacity (kA) 10, Tripping characteristic C
