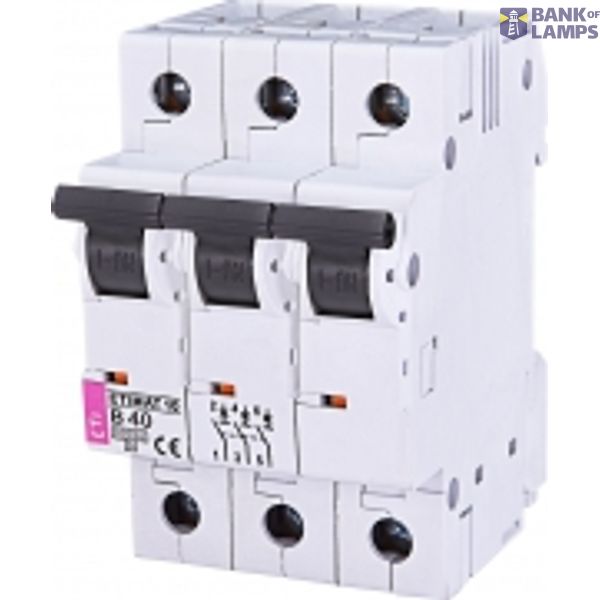

ETIMAT 10 3p B40

Name: ETIMAT 10 3p B40
Brand: ETI
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT 10 3p B40
Brand	ETI
ETIM	EC000042
Rated current	40 A
Rated voltage	400 V
Release characteristic	B
Width in number of modular spacings	3
Number of poles (total)	3

Packing details

Packing level 1	3838895271703, 3838895271703
Packing level 2	3838895279792, 3838895279792
Packing level 3	3838895279808, 3838895279808
Packing level 4	3838895271703, 3838895271703

Other Technical data

Voltage type	AC/DC
Built-in depth	68 mm
Current limiting class	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	No
Additional equipment possible	Yes

Description

Miniature circuit breaker, ETIMAT 10 3p B40, No. Of poles 3, Catalogue Group ETIMAT 10 Miniature circuit breakers 6kA nad 10kA, Function MCB, Rated current (A) 40, Short circuit capacity (kA) 10, Tripping characteristic B
