ETIMAT 10 2p B10

Name: ETIMAT 10 2p B10
Brand: ETI
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT 10 2p B10
Brand	ETI
ETIM	EC000042
Rated current	10 A
Rated voltage	400 V
Release characteristic	B
Width in number of modular spacings	2
Number of poles (total)	2

Packing details

Packing level 1	3838895270706, 3838895270706
Packing level 2	3838895282778
Packing level 3	3838895282785
Packing level 4	3838895270706

Other Technical data

Voltage type	AC/DC
Built-in depth	68 mm
Current limiting class	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	No
Additional equipment possible	Yes

Description

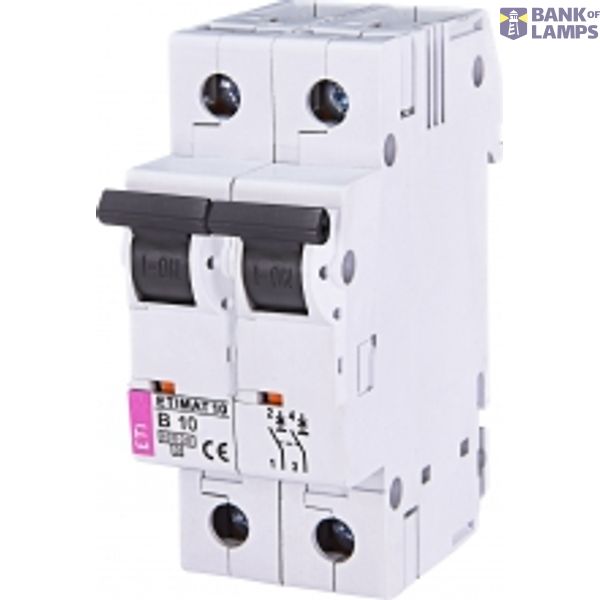

Miniature circuit breaker, ETIMAT 10 2p B10, No. Of poles 2, Catalogue Group ETIMAT 10 Miniature circuit breakers 6kA nad 10kA, Function MCB, Rated current (A) 10, Short circuit capacity (kA) 10, Tripping characteristic B
