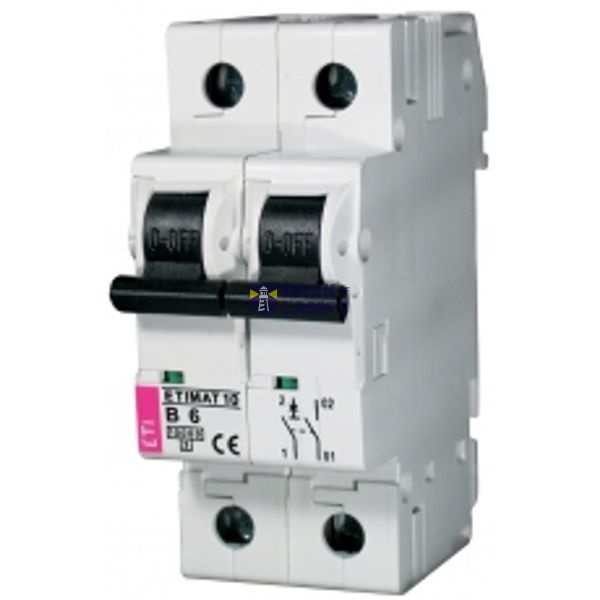

ETIMAT 10 1p+N B6

Name: ETIMAT 10 1p+N B6
Brand: ETI
Availability: PreOrder

In vendor's stock Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT 10 1p+N B6
Brand	ETI
ETIM	EC000042
Rated current	6 A
Rated voltage	230 V
Release characteristic	B
Width in number of modular spacings	2
Number of poles (total)	2

Packing details

Packing level 1	3838895270034, 3838895270034
Packing level 2	3838895281412, 3838895281412
Packing level 3	3838895281429, 3838895281429
Packing level 4	3838895270034, 3838895270034

Other Technical data

Voltage type	AC/DC
Built-in depth	68 mm
Current limiting class	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	Yes
Additional equipment possible	Yes

Description

Miniature circuit breaker, ETIMAT 10 1p+N B6, No. Of poles 2, Function MCB, Rated current (A) 6, Short circuit capacity (kA) 10, Tripping characteristic B
