ETIMAT 10 1p B32

Name: ETIMAT 10 1p B32
Brand: ETI
Availability: PreOrder

In vendor's stock Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ETIMAT 10 1p B32
Brand	ETI
ETIM	EC000042
Rated current	32 A
Rated voltage	230 V
Release characteristic	B
Width in number of modular spacings	1
Number of poles (total)	1

Packing details

Packing level 1	3838895243038, 3838895243038
Packing level 2	3838895277880, 3838895277880
Packing level 3	3838895277897, 3838895277897
Packing level 4	3838895243038, 3838895243038

Other Technical data

Voltage type	AC/DC
Built-in depth	68 mm
Current limiting class	3
Degree of protection (IP)	IP20
Concurrently switching neutral conductor	No
Additional equipment possible	Yes

Description

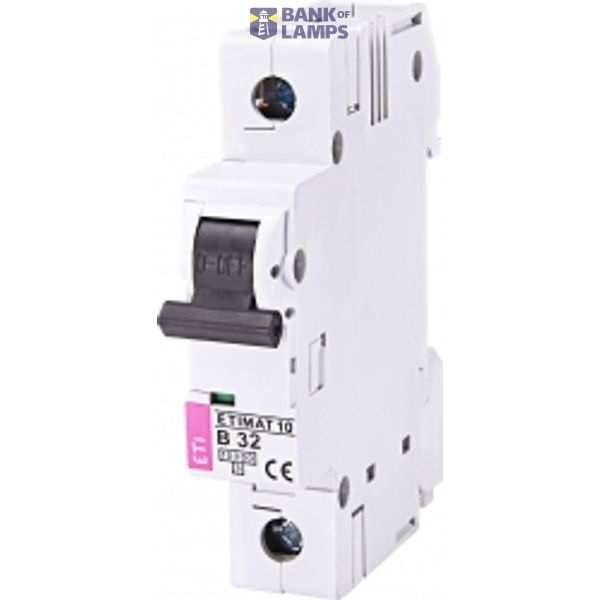

Miniature circuit breaker, ETIMAT 10 1p B32, No. Of poles 1, Catalogue Group ETIMAT 10 Miniature circuit breakers 6kA nad 10kA, Function MCB, Rated current (A) 32, Short circuit capacity (kA) 10, Tripping characteristic B
