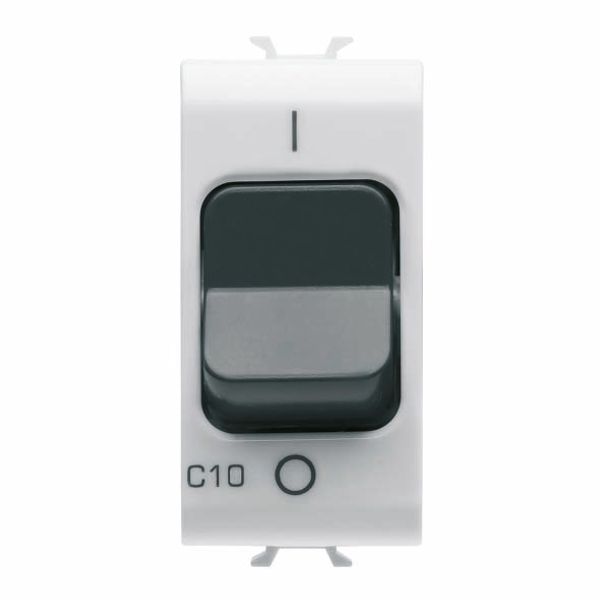

MINIATURE CIRCUIT BREAKER - C CHARACTERISTIC - 1P 10A 230Vac - 1 MODULE - GLOSSY WHITE - CHORUSMART
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
29,82 €
EAN: 8011564262669
MPN: GW10462
Package: 1
Box: 12
Pallet: 3168
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MINIATURE CIRCUIT BREAKER - C CHARACTERISTIC - 1P 10A 230Vac - 1 MODULE - GLOSSY WHITE - CHORUSMART |
| Brand | GEWISS |
| Categories |
Circuit breakers 10A
|
| Harmonized System Code | 8536 2010 00 |
| Rated current | 10 A |
| Rated voltage | 230 V |
| Release characteristic | C |
| Width in number of modular spacings | 1 |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 3 kA |
Packing details
| Packing level 1 | 8011564262669 |
| Packing level 2 | 8011564262669 |
| Packing level 3 | 8011564262669 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 20 mm |
| Frequency | 50 Hz |
| Current limiting class | 0 |
| Over voltage category | 0 |
| Pollution degree | 0 |
| Explosion-proof | No |
| Degree of protection (IP) | IP41 |
| Number of protected poles | 1 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 0-4 mm² |
| Connectable conductor cross section multi-wired | 0-4 mm² |
| Flush-mounted installation | Yes |
| Additional equipment possible | No |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 0 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 0 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 0 kA |
| Rated impulse withstand voltage Uimp | 0 kV |
Description
CHORUSMART - Domestic range White modular devices - The ChoruSmart modular devices allow you to create infinite combinations of devices and plates, thanks to a complete range that covers all design, functional and installation needs.Colours and finishes: glossy white, bright and versatile.Unlimited functions in compact spaces: the ChoruSmart range consists of button keys with ½, 1, 2 and 3 rocker modules, to optimise space according to needs, and axial buttons in the EVO or SMART version, to meet the latest requirements.Front coupling: front coupling allows the components to be assembled and released quickly and easily, with no need to remove the support, which is the same for all plates and boxes.
