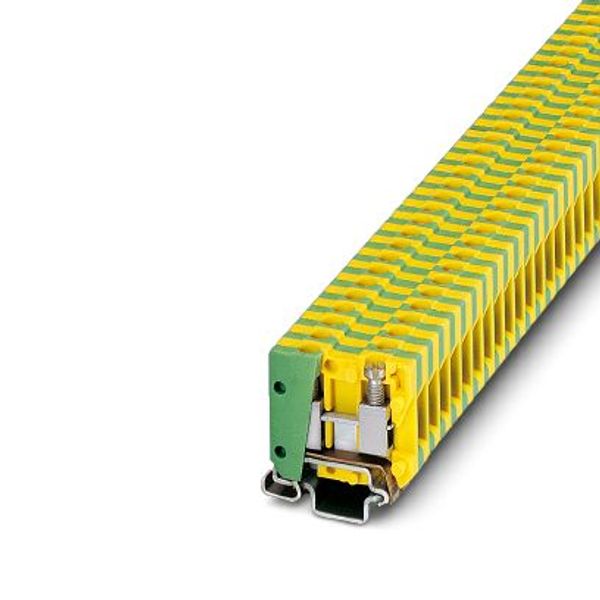

MBK 2,5/E-PE - Mini ground terminal block image 1
MBK 2,5/E-PE - Mini ground terminal block image 2
MBK 2,5/E-PE - Mini ground terminal block image 3
MBK 2,5/E-PE - Mini ground terminal block thumbnail 1
MBK 2,5/E-PE - Mini ground terminal block thumbnail 2
MBK 2,5/E-PE - Mini ground terminal block thumbnail 3
Phoenix Contact

MBK 2,5/E-PE - Mini ground terminal block

Order only Minimal order quantity: 50
Price (excl. VAT):
3,54 € per pcs
This price is valid until 24.12.26
Subtotal: 177,00 € MOQ: 50
EAN: 4017918020897
MPN: 1402788
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name MBK 2,5/E-PE - Mini ground terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin* PL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 15 mm
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
PEN function possible No
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.2-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.2-2.5 mm²
Connectable conductor cross section multi-wired 0.2-2.5 mm²

Packing details

Packing level 1 4017918020897, 4017918020897

Other Technical data

Colour Other
Width 5.1 mm
Height 26.25 mm
Depth 25.3 mm
Operating temperature 105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Material insulation body Other

Description

Mini ground terminal block, number of connections: 2, connection method: Screw connection, 1 level, cross section: 0.2 mm² - 2.5 mm², mounting type: NS 15, color: green-yellow
